Schneider Electric NSYSPS8100 2 Plinth Side Panels 100X800
Schneider Electric
$23.54
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYSPS8100 2 Plinth Side Panels 100X800

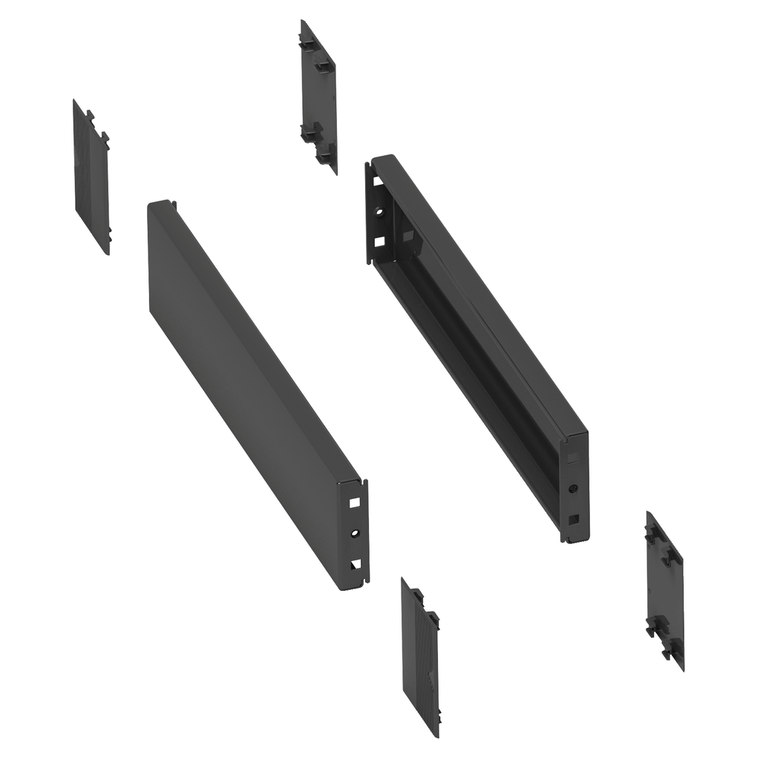

Spacial SF/SFM, Prisma PH side panel plinth. 100 x 800 mm. Multi-purpose, electronic, compartimentalised, pc application. Plinth side panels mounting support. Fixing mode by screws. Epoxy-polyester powder surface finish. Grey RAL 7022. IP30 complete plinth, IK10. 2 side panels.
- Mercury Free:
- Yes
- Mounting Support:
- front plinth
- Fixing Mode:
- by screws
- Rohs Exemption Information:
- Yes
- Range Compatibility:
- Spacial Spacial SF || Prisma Prisma PH || Spacial Spacial SFM
- Height:
- 100 mm
- Ik Degree Of Protection:
- IK10
- Width:
- nominal 800 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile:
- N/A
- Lead Time:
- Usually Ships within 4 Weeks
- Warranty:
- 18 months
- Ip Degree Of Protection:
- IP30 complete plinth)
- Device Application:
- compartmentalised application || PC application || Prisma application || multi-purpose || electronic application
- Range:
- Spacial
- Accessory / Separate Part Category:
- enclosure accessory
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Device Composition:
- fixing elements || 4 corner cover || 2 side panel
- Product Or Component Type:
- plinth side panel
- Sustainable Offer Status:
- Green Premium product
- Environmental Disclosure:
- ENVPEP110923EN
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Color:
- Gray RAL 7022)
- Surface Finish:
- epoxy-polyester powder
