Schneider Electric

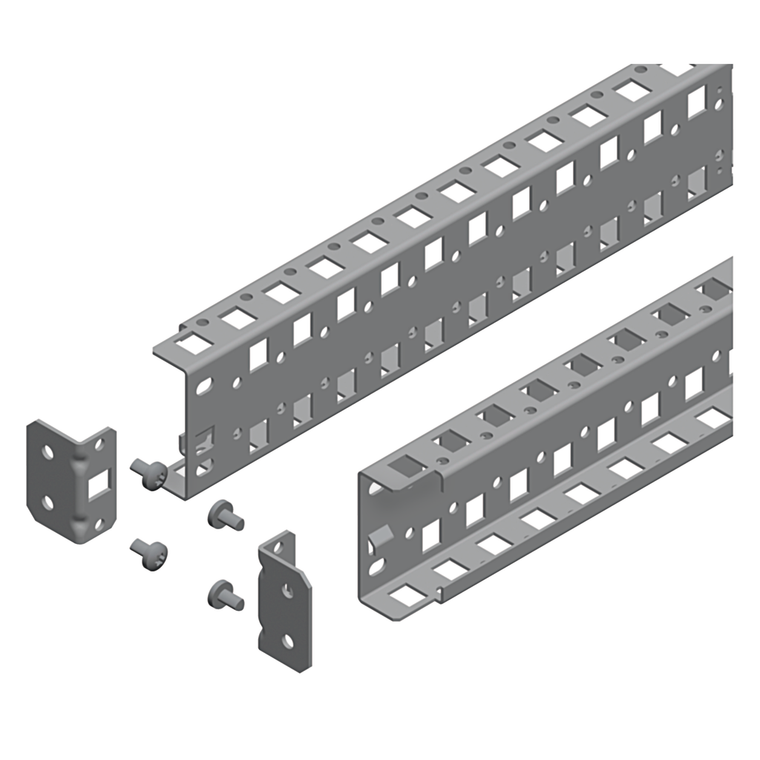

Schneider Electric NSYSUCR65200 2 Universal Rails 2 Rows 2000

SKU:

NSYSUCR65200

UPC:

3.60649E+12

MPN:

Condition:

New

Thickness:

1.5 mm

Range:

Spacial

Sustainable Offer Status:

Green Premium product

Enclosure Nominal Dimensions:

H: 2000 mm

Number Of Horizontal Rows:

2

Installation Direction:

vertical

Mounting Location:

between cross rails || on structure of enclosure

Environmental Disclosure:

ENVPEP110923EN

Adjustment:

adjustable with a pitch of 25 mm

Fixing Mode:

by screws

Circularity Profile:

N/A

Rohs Exemption Information:

Yes

Warranty:

18 months

Depth:

27 mm

Mercury Free:

Yes

Product Or Component Type:

universal cross rail

Accessory / Separate Part Category:

mounting accessory

Quantity Per Set:

set of 1

Device Application:

multi-purpose

Height:

nominal 2000 mm || useful 1907 mm

Material:

steel

Width:

65 mm

Range Compatibility:

Spacial Spacial SF || Spacial Spacial SM || Spacial Spacial SFX || Spacial Spacial SMX

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Device Composition:

fixing elements || 2 cross rails || 4 supports

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic Heavy Metal Free:

Yes

Surface Finish:

galvanized

Mounting Support:

adaptation profile, on SM enclosures

Reach Free Of Svhc:

Yes

Datasheet:

View
