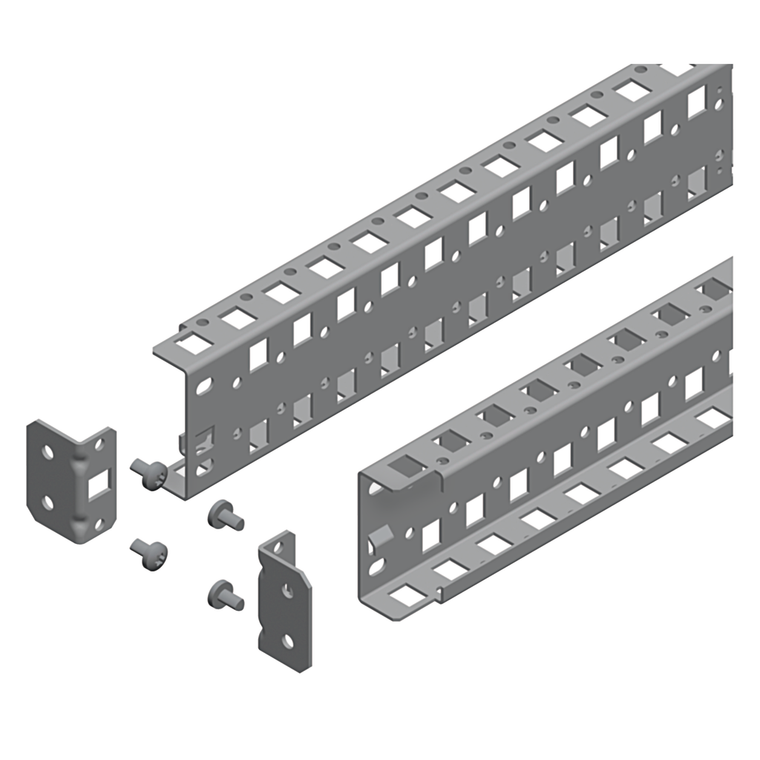

Schneider Electric NSYSUCR6580 2 Universal Rails 2 Rows 800

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYSUCR6580 2 Universal Rails 2 Rows 800

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYSUCR6580

UPC:

3606485133539

MPN:

Condition:

New

Thickness:

1.5 mm

Mounting Support:

adaptation profile, on SM enclosures

Toxic Heavy Metal Free:

Yes

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Range:

Spacial

Reach Free Of Svhc:

Yes

Warranty:

18 months

Fixing Mode:

by screws

Range Compatibility:

Spacial Spacial SF || Spacial Spacial SM || Spacial Spacial SFX || Spacial Spacial SMX

Height:

nominal 800 mm || useful 707 mm

Adjustment:

adjustable with a pitch of 25 mm

Material:

steel

Mounting Location:

between cross rails || on structure of enclosure

Device Composition:

fixing elements || 2 cross rails || 4 supports

Environmental Disclosure:

ENVPEP110923EN

Rohs Exemption Information:

Yes

Maximum Load:

70 kg

Number Of Horizontal Rows:

2

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Circularity Profile:

N/A

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Or Component Type:

universal cross rail

Surface Finish:

galvanized

Mercury Free:

Yes

Enclosure Nominal Dimensions:

H: 800 mm

Sustainable Offer Status:

Green Premium product

Depth:

27 mm

Quantity Per Set:

set of 1

Device Application:

multi-purpose

Accessory / Separate Part Category:

mounting accessory

Width:

65 mm

Catalog:

View

Datasheet:

View
