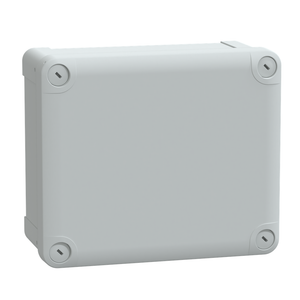

Schneider Electric NSYTBP19168T Pc Ind Box 192X164X87 Lo Tr

Schneider Electric NSYTBP19168T Pc Ind Box 192X164X87 Lo Tr

Schneider Electric
SKU:
NSYTBP19168T
|
UPC:
3606480165825
$41.90
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

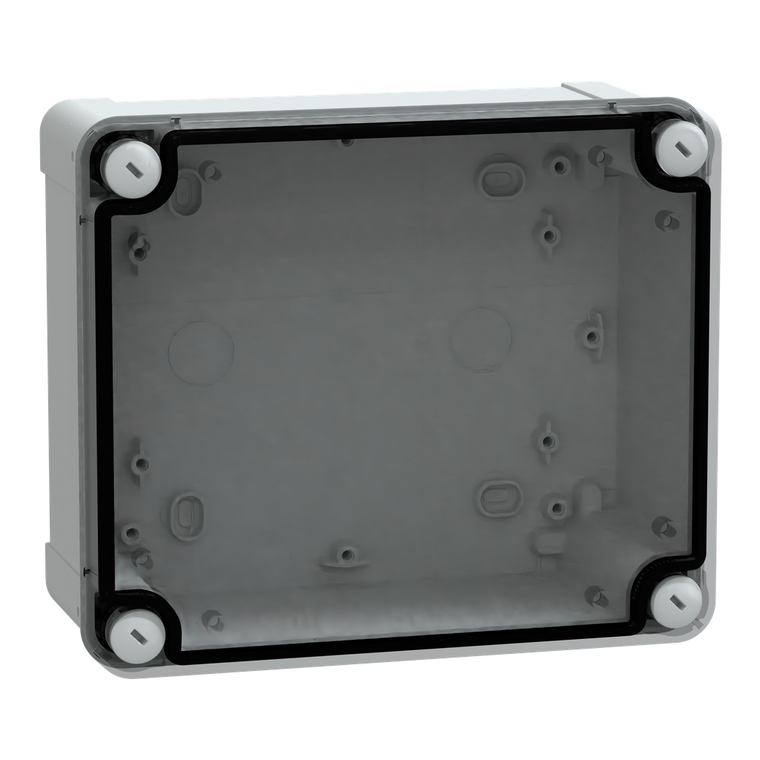

Thalassa TBP industrial PC box with transparent PC cover H20. Int is 175 x 150 x 80 mm. Ext is 193 x 164 x 87 mm. Wall mounted enclosure. Low transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
Additional Information
Standards:
IEC 62208 || UL 508 A
Net Weight:
0.46 kg
Electrical Insulation Class:
class II
Environmental Disclosure:
ENVPEP2012016EN
Mercury Free:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Internal Width:
150 mm
Device Composition:
1 body || 1 cover || 4 cover screw
Sustainable Offer Status:
Green Premium product
Mounting Location:
outdoor (with canopy or shelter and anticondensation valve)
Device Application:
multi-purpose
Ambient Air Temperature For Operation:
-25-80 °C
Type Of Front Cover:
low transparent cover
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Storage:
-15-60 °C
Product Name:
Thalassa TBP
Product Certifications:
TÜV || UL
Toxic Heavy Metal Free:
Yes
Removable Parts:
cover by captive screws
Ip Degree Of Protection:
IP66 conforming to NEMA 4.4X
Internal Depth:
80 mm
Material:
polycarbonate
Rohs Exemption Information:
Yes
Range:
Thalassa
Enclosure Mounting:
wall mounted
Circularity Profile:
ENVEOLI2012016EN
Cover Fixing:
plastic screws
Height:
192 mm
Color:
Gray RAL 7035) || Transparent
Warranty:
18 months
Lock Type:
captive screw flat outside sealed area
Internal Height:
175 mm
Ik Degree Of Protection:
IK08 IEC 62262
Depth:
87 mm
Fire Resistance:
960 °C
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Body Type:
one piece moulded
Product Or Component Type:
industrial box
Reach Free Of Svhc:
Yes
Width:
164 mm
Datasheet:
View
