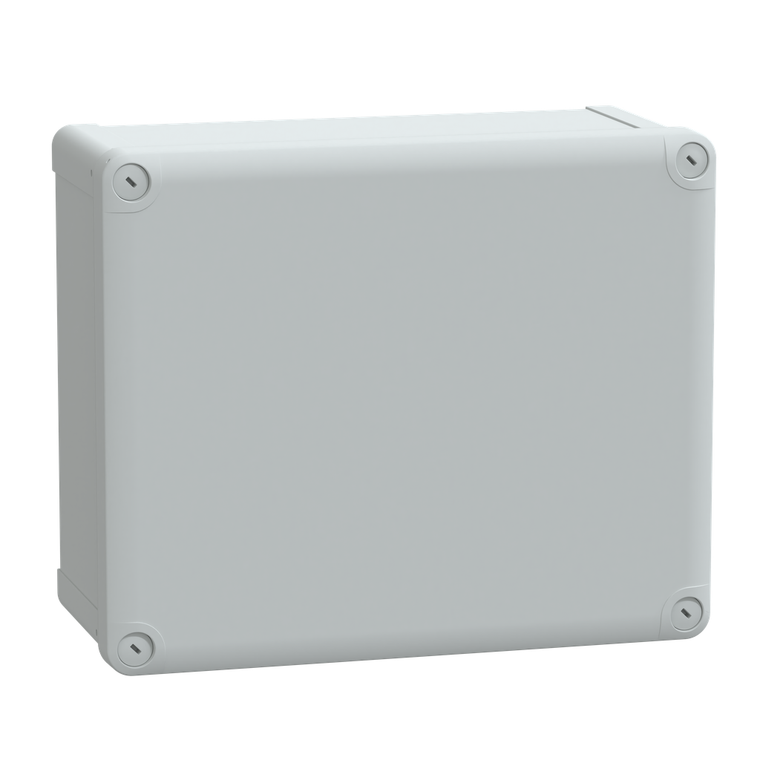

Schneider Electric NSYTBP292412 Pc Ind Box 291X241X128 Lo

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTBP292412 Pc Ind Box 291X241X128 Lo

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTBP292412

UPC:

3606480165740

MPN:

Condition:

New

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Range:

Thalassa

Removable Parts:

cover by captive screws

Mounting Location:

outdoor (with canopy or shelter and anticondensation valve)

Ambient Air Temperature For Operation:

-25-80 °C

Internal Width:

225 mm

Depth:

128 mm

Cover Fixing:

plastic screws

Toxic Heavy Metal Free:

Yes

Material:

polycarbonate

Ip Degree Of Protection:

IP66 conforming to NEMA 4.4X

Electrical Insulation Class:

class II

Lock Type:

captive screw flat outside sealed area

Product Or Component Type:

industrial box

Net Weight:

1.12 kg

Height:

291 mm

Color:

Gray RAL 7035)

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Type Of Front Cover:

low plain cover

Environmental Disclosure:

ENVPEP2012016EN

Product Certifications:

TÜV || UL

Body Type:

one piece moulded

Sustainable Offer Status:

Green Premium product

Width:

241 mm

Fire Resistance:

960 °C

Rohs Exemption Information:

Yes

Circularity Profile:

ENVEOLI2012016EN

Reach Free Of Svhc:

Yes

Mercury Free:

Yes

Standards:

UL 508 A || IEC 62208

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Ambient Air Temperature For Storage:

-15-60 °C

Device Composition:

1 body || 1 cover || 4 cover screw

Warranty:

18 months

Device Application:

multi-purpose

Product Name:

Thalassa TBP

Enclosure Mounting:

wall mounted

Internal Depth:

120 mm

Internal Height:

275 mm

Ik Degree Of Protection:

IK08 IEC 62262

Catalog:

View

Datasheet:

View
