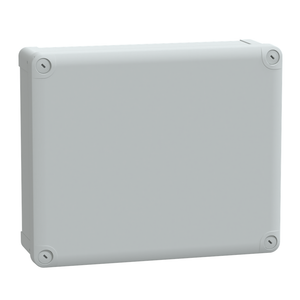

Schneider Electric NSYTBP29248T Pc Ind Box 291X241X87 Lo Tr

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTBP29248T Pc Ind Box 291X241X87 Lo Tr

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTBP29248T

UPC:

3606480165887

MPN:

Condition:

New

Ip Degree Of Protection:

IP66 conforming to NEMA 4.4X

Internal Width:

225 mm

Device Application:

multi-purpose

Lock Type:

captive screw flat outside sealed area

Material:

polycarbonate

Product Certifications:

TÜV || UL

Width:

241 mm

Ambient Air Temperature For Operation:

-25-80 °C

Warranty:

18 months

Body Type:

one piece moulded

Type Of Front Cover:

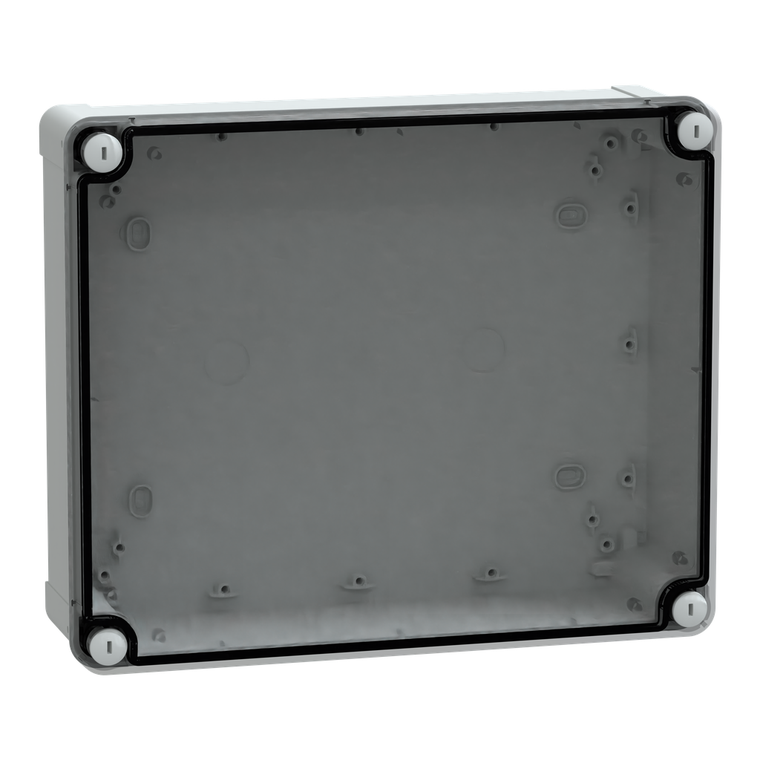

low transparent cover

Internal Depth:

80 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mounting Location:

outdoor (with canopy or shelter and anticondensation valve)

Mercury Free:

Yes

Height:

291 mm

Removable Parts:

cover by captive screws

Fire Resistance:

960 °C

Sustainable Offer Status:

Green Premium product

Toxic Heavy Metal Free:

Yes

Electrical Insulation Class:

class II

Ambient Air Temperature For Storage:

-15-60 °C

Depth:

88 mm

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Cover Fixing:

plastic screws

Internal Height:

275 mm

Product Name:

Thalassa TBP

Standards:

UL 508 A || IEC 62208

Device Composition:

1 body || 1 cover || 4 cover screw

Color:

Gray RAL 7035) || Transparent

Net Weight:

0.86 kg

Product Or Component Type:

industrial box

Reach Free Of Svhc:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Rohs Exemption Information:

Yes

Circularity Profile:

ENVEOLI2012016EN

Range:

Thalassa

Environmental Disclosure:

ENVPEP2012016EN

Enclosure Mounting:

wall mounted

Ik Degree Of Protection:

IK08 IEC 62262
