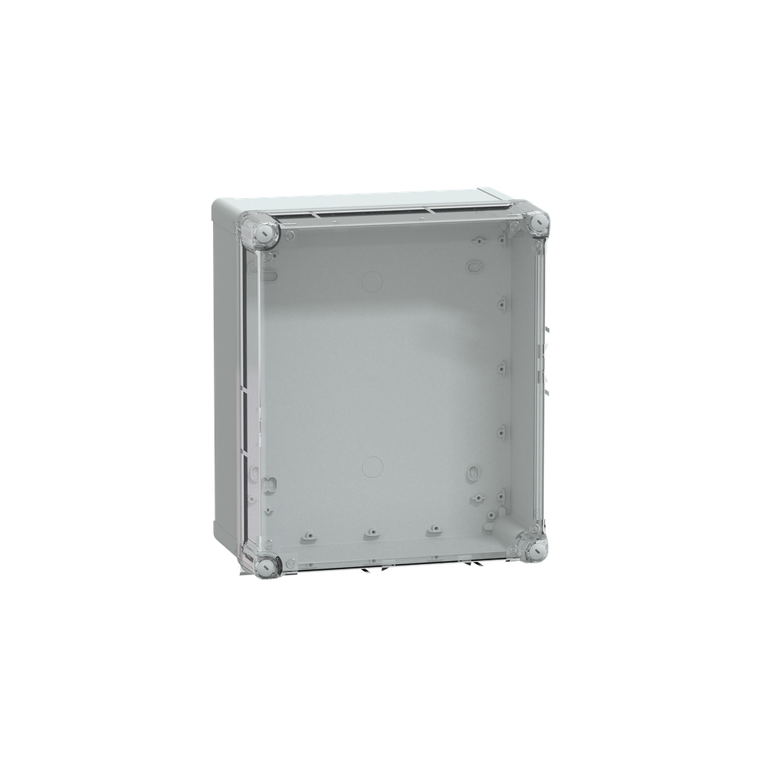

Schneider Electric NSYTBP342916HT Pc Ind Box 341X291X168 Hi Tr

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTBP342916HT Pc Ind Box 341X291X168 Hi Tr

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTBP342916HT

UPC:

3.60648E+12

MPN:

Condition:

New

Ambient Air Temperature For Operation:

-25-80 °C

Removable Parts:

cover by captive screws

Internal Depth:

160 mm

Type Of Front Cover:

high transparent cover

Mercury Free:

Yes

Internal Width:

275 mm

Fire Resistance:

960 °C

Toxic Heavy Metal Free:

Yes

Device Application:

multi-purpose

Rohs Exemption Information:

Yes

Sustainable Offer Status:

Green Premium product

Warranty:

18 months

Ambient Air Temperature For Storage:

-15-60 °C

Material:

polycarbonate

Device Composition:

1 body || 1 cover || 4 cover screw

Ik Degree Of Protection:

IK08 IEC 62262

Product Certifications:

TÜV || UL

Height:

341 mm

Width:

291 mm

Cover Fixing:

plastic screws

Color:

Gray RAL 7035) || Transparent

Body Type:

one piece moulded

Range:

Thalassa

Ip Degree Of Protection:

IP66 conforming to NEMA 4.4X

Depth:

168 mm

Product Name:

Thalassa TBP

Reach Free Of Svhc:

Yes

Circularity Profile:

ENVEOLI2012016EN

Environmental Disclosure:

ENVPEP2012016EN

Net Weight:

1.94 kg

Standards:

UL 508 A || IEC 62208

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Electrical Insulation Class:

class II

Mounting Location:

outdoor (with canopy or shelter and anticondensation valve)

Product Or Component Type:

industrial box

Internal Height:

325 mm

Lock Type:

captive screw flat outside sealed area

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Enclosure Mounting:

wall mounted

Datasheet:

View
