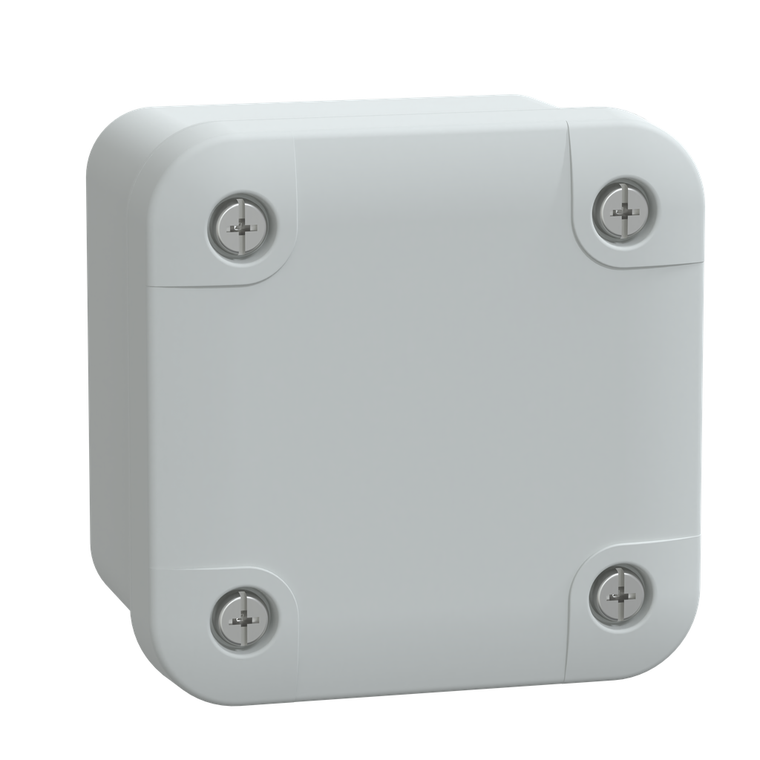

Schneider Electric NSYTBP775 Pc Ind Box 74X74X54 Lo Pack of 5

Schneider Electric NSYTBP775 Pc Ind Box 74X74X54 Lo Pack of 5

Schneider Electric
SKU:
NSYTBP775
|
UPC:
3606480165580
$77.95
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Thalassa TBP industrial PC box with opaque PC cover H10. Int is 65 x 65 x 45 mm. Ext is 74 x 74 x 56 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
Additional Information
Warranty:
18 months
Internal Height:
65 mm
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Internal Width:
65 mm
Rohs Exemption Information:
Yes
Removable Parts:
cover by captive screws
Circularity Profile:
ENVEOLI2012016EN
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Standards:
IEC 62208 || UL 508 A
Lock Type:
captive screw flat outside sealed area
Product Or Component Type:
industrial box
Height:
74 mm
Material:
polycarbonate
Internal Depth:
47 mm
Device Application:
multi-purpose
Net Weight:
0.076 kg
Product Certifications:
TÜV || UL
Color:
Gray RAL 7035)
Cover Fixing:
metal screws
Body Type:
one piece moulded
Quantity Per Set:
set of 5
Ambient Air Temperature For Storage:
-15-60 °C
Environmental Disclosure:
ENVPEP2012016EN
Product Name:
Thalassa TBP
Fire Resistance:
960 °C
Mounting Location:
outdoor (with canopy or shelter and anticondensation valve)
Toxic Heavy Metal Free:
Yes
Sustainable Offer Status:
Green Premium product
Device Composition:
1 body || 1 cover || 4 cover screw
Depth:
54 mm
Width:
74 mm
Ik Degree Of Protection:
IK08 IEC 62262
Electrical Insulation Class:
class II
Ambient Air Temperature For Operation:
-25-80 °C
Range:
Thalassa
Type Of Front Cover:
low plain cover
Mercury Free:
Yes
Ip Degree Of Protection:
IP66 conforming to NEMA 4.4X
Enclosure Mounting:
wall mounted
Reach Free Of Svhc:
Yes
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Datasheet:
