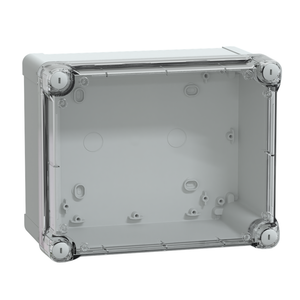

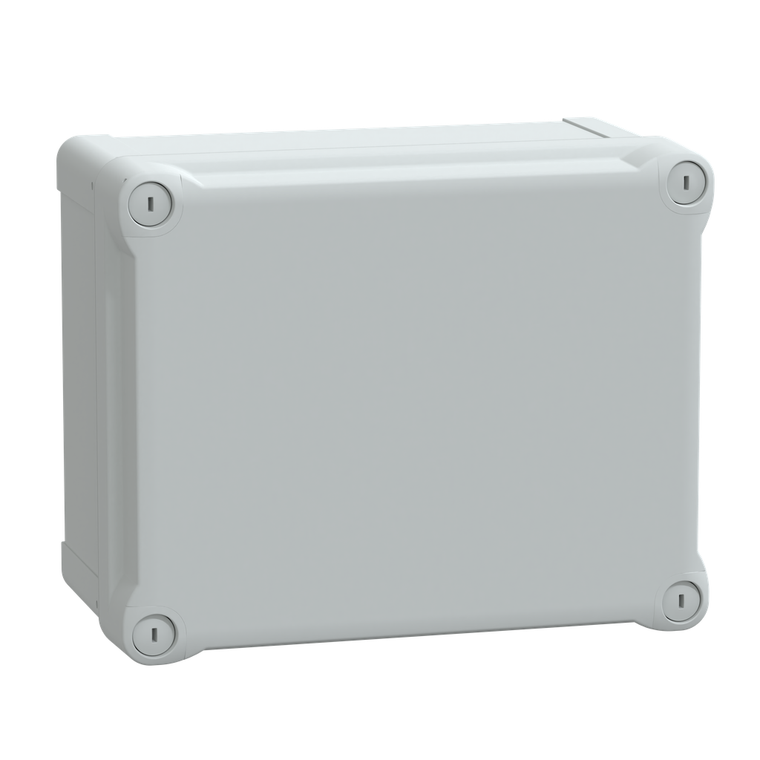

Schneider Electric NSYTBS241912H Abs Ind Box 241X192X128 Hi

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTBS241912H Abs Ind Box 241X192X128 Hi

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTBS241912H

UPC:

3606480165351

MPN:

Condition:

New

Height:

241 mm

Fire Resistance:

650 °C IEC 60695-2-11

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Standards:

IEC 62208

Product Certifications:

TÜV

Toxic Heavy Metal Free:

Yes

Ik Degree Of Protection:

IK07 IEC 62262

Color:

Gray RAL 7035)

Product Name:

Thalassa TBS

Device Composition:

1 body || 1 cover || 4 cover screw

Ip Degree Of Protection:

IP66 conforming to NEMA 4.4X

Width:

194 mm

Range:

Thalassa

Type Of Front Cover:

high plain cover

Mercury Free:

Yes

Internal Depth:

120 mm

Ambient Air Temperature For Operation:

-25-60 °C

Depth:

127 mm

Sustainable Offer Status:

Green Premium product

Reach Free Of Svhc:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Device Application:

multi-purpose

Circularity Profile:

N/A

Enclosure Mounting:

wall mounted

Warranty:

18 months

Rohs Exemption Information:

Yes

Cover Fixing:

plastic screws

Electrical Insulation Class:

class II

Internal Height:

225 mm

Product Or Component Type:

industrial box

Removable Parts:

cover by captive screws

Lock Type:

captive screw flat outside sealed area

Material:

ABS (acrylonitrile butadiene-styrene)

Ambient Air Temperature For Storage:

-15-40 °C

Net Weight:

0.78 kg

Environmental Disclosure:

ENVPEP2012015EN

Internal Width:

175 mm

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Body Type:

one piece moulded

Catalog:

View

Datasheet:

View
