Schneider Electric NSYTRAL43 Plug-In Bridge, 3Points For 4Mm2 Termina Pack of 50
Schneider Electric
$75.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

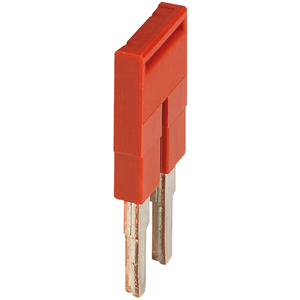

The Linergy line of terminal blocks offers a wide selection of blocks and accessories. Linergy terminal blocks have push-in type, spring type, and screw type terminal blocks. A plug-in bridge jumper is used to connect all of the terminal blocks electrically. This plug-in jumper will connect three 6.2 mm wide terminal blocks. Jumper has a red cover. Each jumper wieghs 0.11 oz. The jumpers are sold in sets of 50 jumpers per package.
- Environmental Disclosure:
- ENVPEP1304013EN
- Number Of Ways:
- 3 ways
- Product Compatibility:
- TRV screw terminal terminal block || TRP push-in terminal block || TRR spring terminal terminal block || TRH IDC terminal block
- Product Or Component Type:
- plug-in bridge
- Cable Cross Section:
- 4-4 mm²
- Net Weight:
- 3 g
- Color:
- Red
- Rohs Exemption Information:
- Yes
- Warranty:
- 18 months
- Toxic Heavy Metal Free:
- Yes
- Device Short Name:
- TRA
- Range:
- Linergy
- Halogen Content Performance:
- Halogen free plastic parts product
- Number Of Terminals:
- 4 || 2 || 3
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Sustainable Offer Status:
- Green Premium product
- Number Of Measurement Input:
- 2 || 1 || 3 || 6 || 4
- Product Name:
- Linergy TR
- Accessory / Separate Part Category:
- connection accessory
- Quantity Per Set:
- set of 50
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free Of Svhc:
- Yes
- Circularity Profile:
- N/A
- Mercury Free:
- Yes
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Catalog:
- View
- Datasheet:
- View
