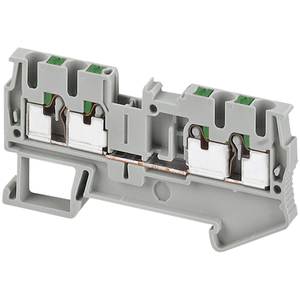

Schneider Electric NSYTRP23 Push-In Terminal, Feed Through, 3 Points Pack of 50
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus and 800V conforming to EN/IEC 60947-7-1. The rated current is 24A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and cURus. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x2 push-in (upstream and downstream) terminals. It could be connection without tool and disconnection by flat screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (VDE, LR, cURus, IEC-Ex, ATEX, EAC, GL, CSA). It is compliant with Green Premium (RoHS/REACH).
- Material:
- polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Number Of Terminals:
- 3
- Mercury Free:
- Yes
- Quantity Per Set:
- set of 50
- Terminal Block Type:
- passthrough
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Halogen Content Performance:
- Halogen free plastic parts product
- Width:
- 5.2 mm
- Height:
- 36.5 mm
- Product Certifications:
- LR || cURus || GL || VDE || CSA || ATEX || IEC-Ex || EAC
- Product Compatibility:
- Spacial enclosures
- Toxic Heavy Metal Free:
- Yes
- Surface Resistance:
- 1000 G⦠IEC 60093 || 1000 G⦠VDE 0303-T30
- Flame Retardance:
- V0 0.8 mm UL 94
- Range:
- Linergy
- Creep Resistance:
- 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
- Mounting Mode:
- clip-on
- Rohs Exemption Information:
- Yes
- Connection Position:
- top
- Reach Free Of Svhc:
- Yes
- Line Rated Current:
- 24-24 A EN/IEC 60947-7-1 || 20-20 A CSA || 20-20 A cURus
- Number Of Measurement Input:
- 2
- Wire Stripping Length:
- 10 mm
- Nominal Cross Section:
- 2.5 mm²
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Dielectric Constant:
- 3.7 at 1 MHz
- Sustainable Offer Status:
- Green Premium product
- Device Short Name:
- TRP
- Environmental Disclosure:
- ENVPEP2309019EN
- Length:
- 60.5 mm
- Accessory / Separate Part Category:
- connection accessory
- Net Weight:
- 8.8 g
- Circularity Profile:
- N/A
- Cable Cross Section:
- 0.14-2.5 mm², flexible without cable end || 0.14-4 mm², solid with cable end || 0.2-2.5 mm², solid without cable end || 0.8-2.5 mm², flexible with cable end
- Resistivity:
- 10000 Mâ¦.m IEC 60093 || 10000 Mâ¦.m VDE 0303-T30
- Warranty:
- 18 months
- Range Compatibility:
- Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
- Terminal Block Level:
- 1
- Ambient Air Temperature For Operation:
- -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
- [Ue] Rated Operational Voltage:
- 800 V EN/IEC 60947-7-1 || 600 V CSA || 600 V cURus
- Color:
- Gray
- Dielectric Loss:
- 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
- Product Name:
- Linergy TR
- Dielectric Strength:
- 1000 V IEC 60243-1
- Product Or Component Type:
- terminal block
- Connections - Terminals:
- 1 x push-in upstream || 2 x push-in downstream
- Tool Type:
- connection without tool || disconnection flat screwdriver
