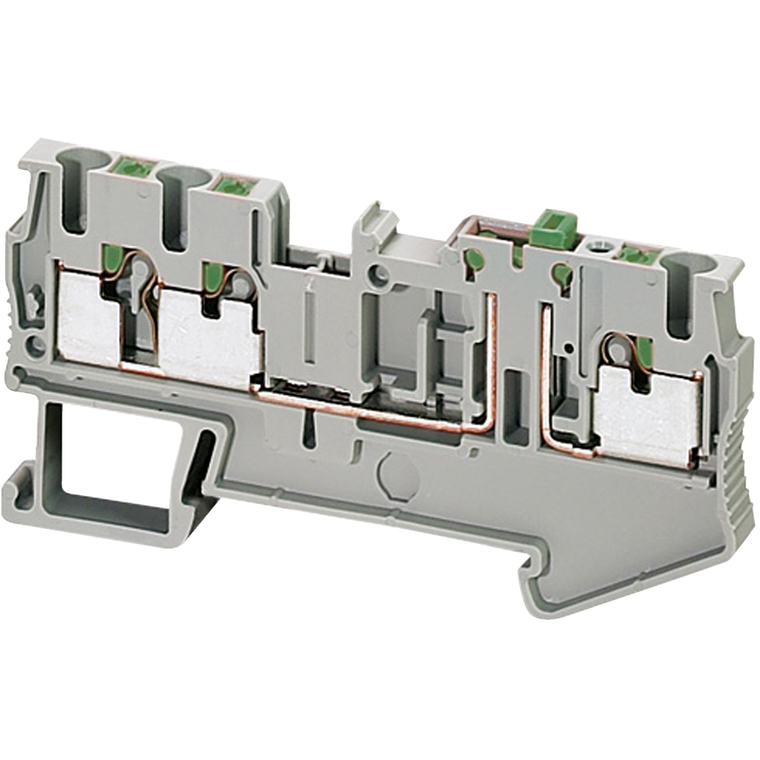

Schneider Electric NSYTRP23SC Push-In Terminal, Knife Disconnect, 3 Po Pack of 50

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTRP23SC Push-In Terminal, Knife Disconnect, 3 Po Pack of 50

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTRP23SC

UPC:

3.60648E+12

MPN:

Condition:

New

Line Rated Current:

20-20 A EN/IEC 60947-7-1 || 20-20 A cURus || 20-20 A CSA

Mercury Free:

Yes

Terminal Block Type:

blade disconnect

Number Of Terminals:

3

Quantity Per Set:

set of 50

Wire Stripping Length:

10 mm

Resistivity:

10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30

Device Short Name:

TRP

Halogen Content Performance:

Halogen free plastic parts product

Environmental Disclosure:

ENVPEP2309019EN

Product Or Component Type:

terminal block

Range:

Linergy

Tool Type:

disconnection flat screwdriver || connection without tool

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Connections - Terminals:

1 x push-in upstream || 2 x push-in downstream

Cable Cross Section:

0.14-2.5 mm², flexible without cable end || 0.14-4 mm², solid

Toxic Heavy Metal Free:

Yes

Number Of Measurement Input:

2

Dielectric Constant:

3.7 at 1 MHz

Flame Retardance:

V0 0.8 mm UL 94

[Ue] Rated Operational Voltage:

300 V CSA || 300 V cURus || 400 V EN/IEC 60947-7-1

Connection Position:

top

Width:

5.2 mm

Product Compatibility:

Spacial enclosures

Sustainable Offer Status:

Green Premium product

Net Weight:

11 g

Height:

36.5 mm

Dielectric Strength:

1000 V IEC 60243-1

Material:

polyamide 6/6: insulating case

Mounting Mode:

clip-on

Nominal Cross Section:

2.5 mm²

Ambient Air Temperature For Operation:

-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21

Reach Free Of Svhc:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Terminal Block Level:

1

Length:

72 mm

Creep Resistance:

500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30

Dielectric Loss:

0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Circularity Profile:

N/A

Surface Resistance:

1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30

Range Compatibility:

Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys

Product Certifications:

CSA || EAC || VDE || cURus || GL || LR

Product Name:

Linergy TR

Rohs Exemption Information:

Yes

Color:

Gray

Catalog:

View

Datasheet:

View
