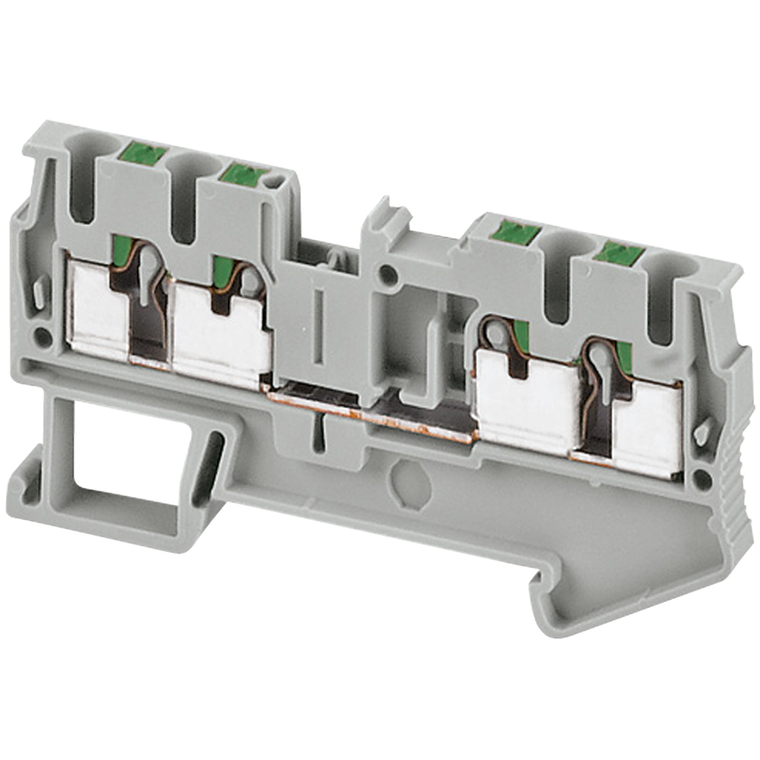

Schneider Electric NSYTRP24 Push-In Terminal, Feed Through, 4 Points Pack of 50

SKU:

NSYTRP24

UPC:

3606480533204

MPN:

Condition:

New

Product Compatibility:

Spacial enclosures

Connection Position:

top

Range:

Linergy

Product Name:

Linergy TR

Quantity Per Set:

set of 50

Dielectric Loss:

0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4

Ambient Air Temperature For Operation:

-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21

Terminal Block Level:

1

Environmental Disclosure:

ENVPEP2309019EN

Dielectric Constant:

3.7 at 1 MHz

Warranty:

18 months

Surface Resistance:

1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30

[Ue] Rated Operational Voltage:

800 V EN/IEC 60947-7-1 || 600 V CSA || 600 V cURus

Product Or Component Type:

terminal block

Width:

5.2 mm

Sustainable Offer Status:

Green Premium product

Number Of Terminals:

4

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Tool Type:

connection without tool || disconnection flat screwdriver

Product Certifications:

GL || ATEX || cURus || LR || IEC-Ex || EAC || VDE || CSA

Net Weight:

10.6 g

Material:

polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring

Range Compatibility:

Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys

Mounting Mode:

clip-on

Flame Retardance:

V0 0.8 mm UL 94

Reach Free Of Svhc:

Yes

Terminal Block Type:

passthrough

Device Short Name:

TRP

Halogen Content Performance:

Halogen free plastic parts product

Creep Resistance:

500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30

Nominal Cross Section:

2.5 mm²

Mercury Free:

Yes

Resistivity:

10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30

Connections - Terminals:

2 x push-in downstream || 2 x push-in upstream

Number Of Measurement Input:

2

Color:

Gray

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Line Rated Current:

24-24 A EN/IEC 60947-7-1 || 20-20 A CSA || 20-20 A cURus

Wire Stripping Length:

10 mm

Accessory / Separate Part Category:

connection accessory

Dielectric Strength:

1000 V IEC 60243-1

Height:

36.5 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Circularity Profile:

N/A

Toxic Heavy Metal Free:

Yes

Rohs Exemption Information:

Yes

Cable Cross Section:

0.14-2.5 mm², flexible without cable end || 0.14-4 mm², solid with cable end || 0.2-2.5 mm², solid without cable end || 0.8-2.5 mm², flexible with cable end

Length:

72 mm
