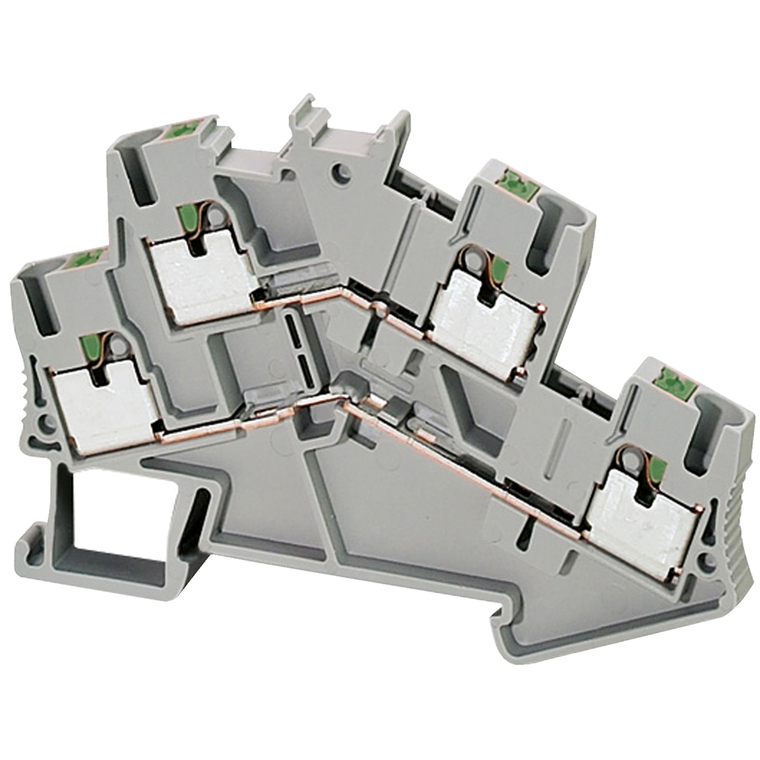

Schneider Electric NSYTRP24D Push-In Terminal, Double Level, 4 Points Pack of 50

SKU:

NSYTRP24D

UPC:

3606480533235

MPN:

Condition:

New

Device Short Name:

TRP

Resistivity:

10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30

Material:

polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring

Halogen Content Performance:

Halogen free plastic parts product

Dielectric Constant:

3.7 at 1 MHz

Length:

78 mm

Surface Resistance:

1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30

Tool Type:

connection without tool || disconnection flat screwdriver

Accessory / Separate Part Category:

connection accessory

Cable Cross Section:

0.14-2.5 mm², flexible without cable end || 0.14-4 mm², solid with cable end || 0.2-2.5 mm², solid without cable end || 0.8-2.5 mm², flexible with cable end

Product Compatibility:

Spacial enclosures

Quantity Per Set:

set of 50

Nominal Cross Section:

2.5 mm²

Color:

Gray

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental Disclosure:

ENVPEP2309019EN

Reach Free Of Svhc:

Yes

Range Compatibility:

Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys

Range:

Linergy

Sustainable Offer Status:

Green Premium product

Product Name:

Linergy TR

Width:

5.2 mm

[Ue] Rated Operational Voltage:

600 V CSA || 500 V EN/IEC 60947-7-1 || 440 V || 600 V cURus

Height:

55 mm

Terminal Block Type:

passthrough

Rohs Exemption Information:

Yes

Mercury Free:

Yes

Ambient Air Temperature For Operation:

-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21

Terminal Block Level:

2

Circularity Profile:

N/A

Net Weight:

14.3 g

Wire Stripping Length:

10 mm

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Product Or Component Type:

terminal block

Dielectric Loss:

0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Dielectric Strength:

1000 V IEC 60243-1

Line Rated Current:

20-20 A CSA || 20-20 A cURus || 22-22 A EN/IEC 60947-7-1 || 19.5-19.5 A

Product Certifications:

CSA || LR || GL || cURus || VDE || EAC

Connection Position:

inclined

Creep Resistance:

500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30

Number Of Terminals:

2

Number Of Measurement Input:

4

Mounting Mode:

clip-on

Connections - Terminals:

1 x push-in upstream || 1 x push-in downstream

Toxic Heavy Metal Free:

Yes

Flame Retardance:

V0 0.8 mm UL 94
