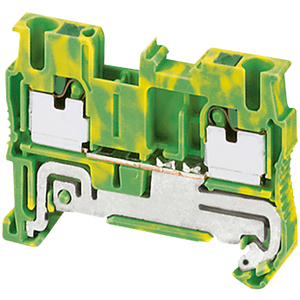

Schneider Electric NSYTRP42PE Push-In Terminal, Protective Earth, 2 Po Pack of 50

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTRP42PE Push-In Terminal, Protective Earth, 2 Po Pack of 50

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTRP42PE

UPC:

3606480533280

MPN:

Condition:

New

Flame Retardance:

V0 0.8 mm UL 94

Terminal Block Type:

protective earth

Circularity Profile:

N/A

Wire Stripping Length:

12 mm

Ambient Air Temperature For Operation:

-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21

Tool Type:

disconnection flat screwdriver || connection without tool

Resistivity:

10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30

Sustainable Offer Status:

Green Premium product

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Number Of Measurement Input:

2

Quantity Per Set:

set of 50

Connections - Terminals:

1 x push-in upstream || 1 x push-in downstream

Range Compatibility:

Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys

Dielectric Constant:

3.7 at 1 MHz

Reach Free Of Svhc:

Yes

Length:

56 mm

Color:

green-yellow

Terminal Block Level:

1

Height:

36.5 mm

Mounting Mode:

clip-on

Dielectric Strength:

1000 V IEC 60243-1

Connection Position:

top

Mercury Free:

Yes

Product Name:

Linergy TR

Nominal Cross Section:

4 mm²

Creep Resistance:

500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30

Material:

polyamide 6/6: insulating case

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental Disclosure:

ENVPEP2309020EN

Cable Cross Section:

0.08-6 mm², solid || 0.2-4 mm², flexible with cable end || 0.08-4 mm², flexible without cable end

Halogen Content Performance:

Halogen free plastic parts product

Rohs Exemption Information:

Yes

Net Weight:

12.5 g

Product Certifications:

IEC-Ex || CSA || EAC || ATEX || cURus || GL || LR

Range:

Linergy

Device Short Name:

TRP

Toxic Heavy Metal Free:

Yes

Product Compatibility:

Spacial enclosures

Surface Resistance:

1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Width:

6.2 mm

Product Or Component Type:

terminal block

Dielectric Loss:

0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4

Number Of Terminals:

2

Warranty:

18 months
