Schneider Electric

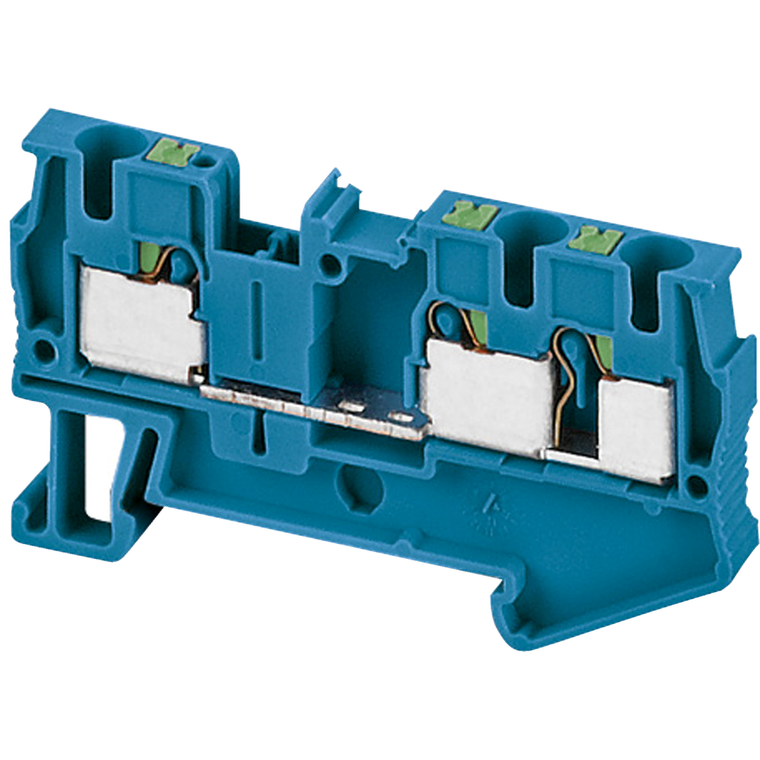

Schneider Electric NSYTRP43BL Push-In Terminal, Feed Through, 3 Points

SKU:

NSYTRP43BL

UPC:

3.60648E+12

MPN:

Condition:

New

Product Compatibility:

Spacial enclosures

Length:

66.5 mm

Number Of Terminals:

3

Rohs Exemption Information:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free:

Yes

Mounting Mode:

clip-on

Net Weight:

11.3 g

Circularity Profile:

N/A

Range:

Linergy

Wire Stripping Length:

12 mm

Cable Cross Section:

0.2-4 mm², flexible without cable end || 0.2-6 mm², solid with cable end || 0.8-4 mm², flexible with cable end || 0.2-4 mm², solid without cable end

Reach Free Of Svhc:

Yes

Resistivity:

10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30

Warranty:

18 months

[Ue] Rated Operational Voltage:

800 V EN/IEC 60947-7-1 || 600 V CSA || 600 V cURus

Ambient Air Temperature For Operation:

-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21

Color:

Blue

Halogen Content Performance:

Halogen free plastic parts product

Product Or Component Type:

terminal block

Connection Position:

top

Material:

polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Sustainable Offer Status:

Green Premium product

Number Of Measurement Input:

2

Height:

36.5 mm

Product Name:

Linergy TR

Connections - Terminals:

1 x push-in upstream || 2 x push-in downstream

Surface Resistance:

1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30

Terminal Block Type:

passthrough

Tool Type:

connection without tool || disconnection flat screwdriver

Product Certifications:

cURus || ATEX || CSA || EAC || IEC-Ex || LR || GL

Creep Resistance:

500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30

Width:

6.2 mm

Line Rated Current:

32-32 A EN/IEC 60947-7-1 || 30-30 A CSA || 30-30 A cURus

Toxic Heavy Metal Free:

Yes

Accessory / Separate Part Category:

connection accessory

Environmental Disclosure:

ENVPEP2309019EN

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Dielectric Loss:

0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4

Device Short Name:

TRP

Flame Retardance:

V0 0.8 mm UL 94

Dielectric Strength:

1000 V IEC 60243-1

Quantity Per Set:

set of 50

Range Compatibility:

Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys

Dielectric Constant:

3.7 at 1 MHz

Nominal Cross Section:

4 mm²

Terminal Block Level:

1
