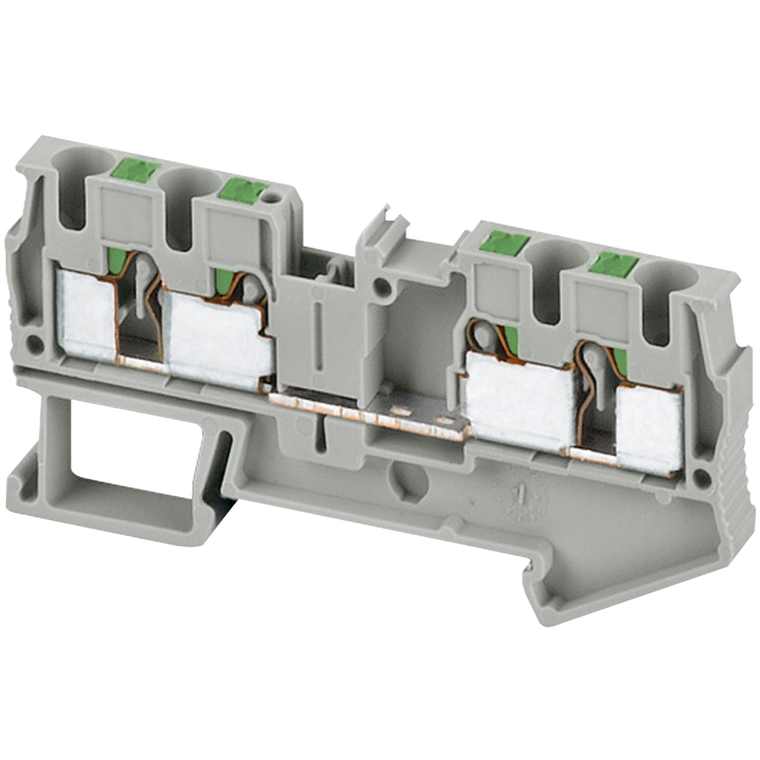

Schneider Electric NSYTRP44 Push-In Terminal, Feed Through, 4 Points

SKU:

NSYTRP44

UPC:

3606480533327

MPN:

Condition:

New

Dielectric Strength:

1000 V IEC 60243-1

Accessory / Separate Part Category:

connection accessory

Mercury Free:

Yes

Product Compatibility:

Spacial enclosures

Number Of Terminals:

4

Product Certifications:

LR || IEC-Ex || cURus || GL || CSA || EAC || ATEX

Nominal Cross Section:

4 mm²

Quantity Per Set:

set of 50

Dielectric Loss:

0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4

Mounting Mode:

clip-on

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Height:

36.5 mm

Ambient Air Temperature For Operation:

-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21

Halogen Content Performance:

Halogen free plastic parts product

Toxic Heavy Metal Free:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Number Of Measurement Input:

2

Length:

77 mm

Net Weight:

14.2 g

Sustainable Offer Status:

Green Premium product

Circularity Profile:

N/A

Warranty:

18 months

Width:

6.2 mm

[Ue] Rated Operational Voltage:

800 V EN/IEC 60947-7-1 || 600 V CSA || 600 V cURus

Terminal Block Type:

passthrough

Tool Type:

connection without tool || disconnection flat screwdriver

Dielectric Constant:

3.7 at 1 MHz

Color:

Gray

Rohs Exemption Information:

Yes

Line Rated Current:

32-32 A EN/IEC 60947-7-1 || 30-30 A CSA || 30-30 A cURus

Range Compatibility:

Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Creep Resistance:

500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30

Range:

Linergy

Reach Free Of Svhc:

Yes

Product Name:

Linergy TR

Product Or Component Type:

terminal block

Material:

polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring

Cable Cross Section:

0.2-4 mm², flexible without cable end || 0.2-6 mm², solid with cable end || 0.8-4 mm², flexible with cable end || 0.2-4 mm², solid without cable end

Device Short Name:

TRP

Terminal Block Level:

1

Surface Resistance:

1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30

Environmental Disclosure:

ENVPEP2309019EN

Connection Position:

top

Connections - Terminals:

2 x push-in downstream || 2 x push-in upstream

Wire Stripping Length:

12 mm

Resistivity:

10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30

Flame Retardance:

V0 0.8 mm UL 94
