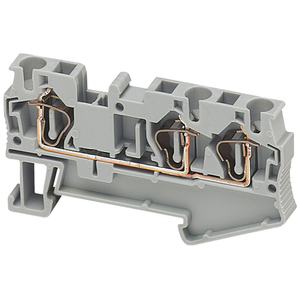

Schneider Electric NSYTRR23 Spring Terminal, Feed Through, 3 Points, Pack of 50
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus and 800V conforming to EN/IEC 60947-7-1. The rated current is 24A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and cURus. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).
- Connection Position:
- top
- Number Of Terminals:
- 3
- Flame Retardance:
- V0 0.8 mm UL 94
- Resistivity:
- 10000 Mâ¦.m IEC 60093 || 10000 Mâ¦.m VDE 0303-T30
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Sustainable Offer Status:
- Green Premium product
- Dielectric Loss:
- 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
- Mounting Mode:
- clip-on
- Terminal Block Type:
- passthrough
- Product Or Component Type:
- terminal block
- Line Rated Current:
- 20-20 A CSA || 20-20 A cURus || 24-24 A EN/IEC 60947-7-1
- Creep Resistance:
- 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
- Surface Resistance:
- 1000 G⦠IEC 60093 || 1000 G⦠VDE 0303-T30
- Product Compatibility:
- Spacial enclosures
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Color:
- Gray
- Product Certifications:
- ATEX || cURus || EAC || CSA || GL || IEC-Ex || VDE || DNV || LR
- Length:
- 60.5 mm
- Connections - Terminals:
- 1 x spring terminal upstream || 2 x spring terminal downstream
- Number Of Measurement Input:
- 2
- Width:
- 5.2 mm
- Environmental Disclosure:
- ENVPEP2309017EN
- Material:
- polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring
- Warranty:
- 18 months
- [Ue] Rated Operational Voltage:
- 600 V CSA || 800 V EN/IEC 60947-7-1 || 600 V cURus
- Nominal Cross Section:
- 2.5 mm²
- Range:
- Linergy
- Halogen Content Performance:
- Halogen free plastic parts product
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Wire Stripping Length:
- 10 mm
- Mercury Free:
- Yes
- Net Weight:
- 7 g
- Range Compatibility:
- Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
- Circularity Profile:
- N/A
- Toxic Heavy Metal Free:
- Yes
- Quantity Per Set:
- set of 50
- Dielectric Strength:
- 1000 V IEC 60243-1
- Cable Cross Section:
- 0.08-2.5 mm², flexible without cable end || 0.08-4 mm², solid with cable end || 0.2-2.5 mm², flexible with cable end || 0.08-4 mm², solid without cable end
- Terminal Block Level:
- 1
- Rohs Exemption Information:
- Yes
- Dielectric Constant:
- 3.7 at 1 MHz
- Height:
- 36.5 mm
- Product Name:
- Linergy TR
- Ambient Air Temperature For Operation:
- -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
- Tool Type:
- connection flat screwdriver || disconnection flat screwdriver
- Device Short Name:
- TRR
- Accessory / Separate Part Category:
- connection accessory
- Reach Free Of Svhc:
- Yes
