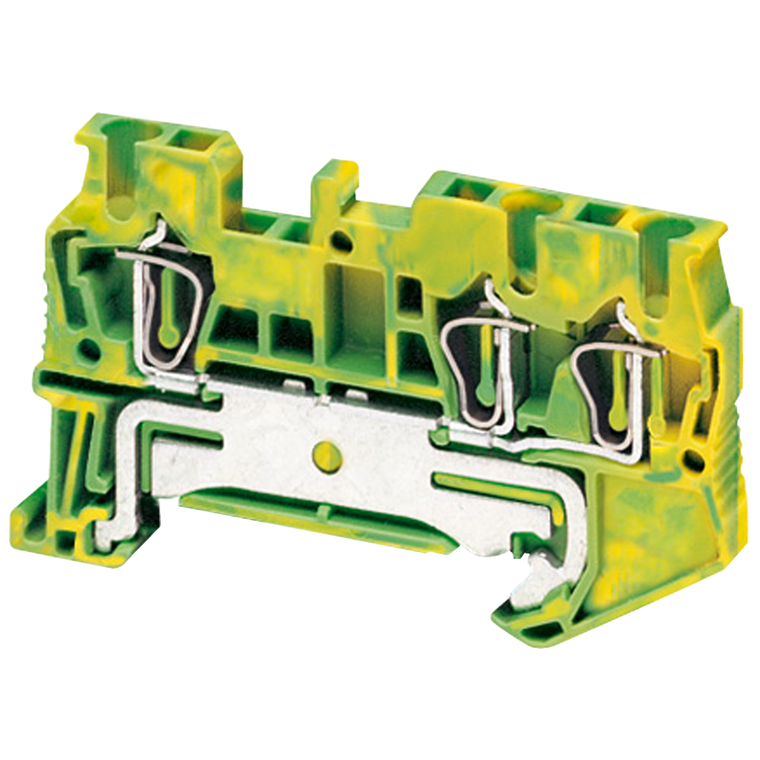

Schneider Electric NSYTRR23PE Spring Terminal, Protective Earth, 3 Poi

Schneider Electric NSYTRR23PE Spring Terminal, Protective Earth, 3 Poi

Schneider Electric
SKU:
NSYTRR23PE
|
UPC:
3606480532573
$6.30
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
The Linergy line of terminal blocks offers a wide selection of blocks and accessories. Linergy terminal blocks have push-in type, spring type, and screw type terminal blocks. This green/yellow grounding terminal block has 3 terminal points. This terminal block has spring termination. The terminals will accept wires from 28 AWG to 12AWG. A screw driver is used to clamp this block to the 35mm DIN rail to make the ground connection. Each block is 1.44 inches tall, 0.20 inches wide and 2.38 inches deep. Each wieghs 0.41 oz. The blocks are sold in boxes of 50. The blocks are UL component recognized, CSA certified and meet IEC requirements.
Additional Information
Flame Retardance:
V0 0.8 mm UL 94
Connection Position:
top
Product Or Component Type:
terminal block
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Operation:
-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
Halogen Content Performance:
Halogen free plastic parts product
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Color:
green-yellow
Material:
polyamide 6/6: insulating case
Number Of Measurement Input:
2
Environmental Disclosure:
ENVPEP2309021EN
Width:
5.2 mm
Tool Type:
connection flat screwdriver || disconnection flat screwdriver
Wire Stripping Length:
10 mm
Dielectric Loss:
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
Terminal Block Level:
1
Range Compatibility:
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Product Certifications:
VDE || DNV || ATEX || LR || IEC-Ex || GL || cURus || EAC || CSA
Range:
Linergy
Rohs Exemption Information:
Yes
Creep Resistance:
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
Number Of Terminals:
3
Height:
36.5 mm
Warranty:
18 months
Device Short Name:
TRR
Mercury Free:
Yes
Resistivity:
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Mounting Mode:
clip-on
Connections - Terminals:
1 x spring terminal upstream || 2 x spring terminal downstream
Dielectric Constant:
3.7 at 1 MHz
Nominal Cross Section:
2.5 mm²
Circularity Profile:
N/A
Dielectric Strength:
1000 V IEC 60243-1
Product Name:
Linergy TR
Reach Free Of Svhc:
Yes
Quantity Per Set:
set of 50
Product Compatibility:
Spacial enclosures
Surface Resistance:
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
Cable Cross Section:
0.08-4 mm², solid || 0.2-2.5 mm², flexible with cable end || 0.08-2.5 mm², flexible without cable end
Toxic Heavy Metal Free:
Yes
Net Weight:
11.58 g
Length:
60.5 mm
Terminal Block Type:
protective earth
