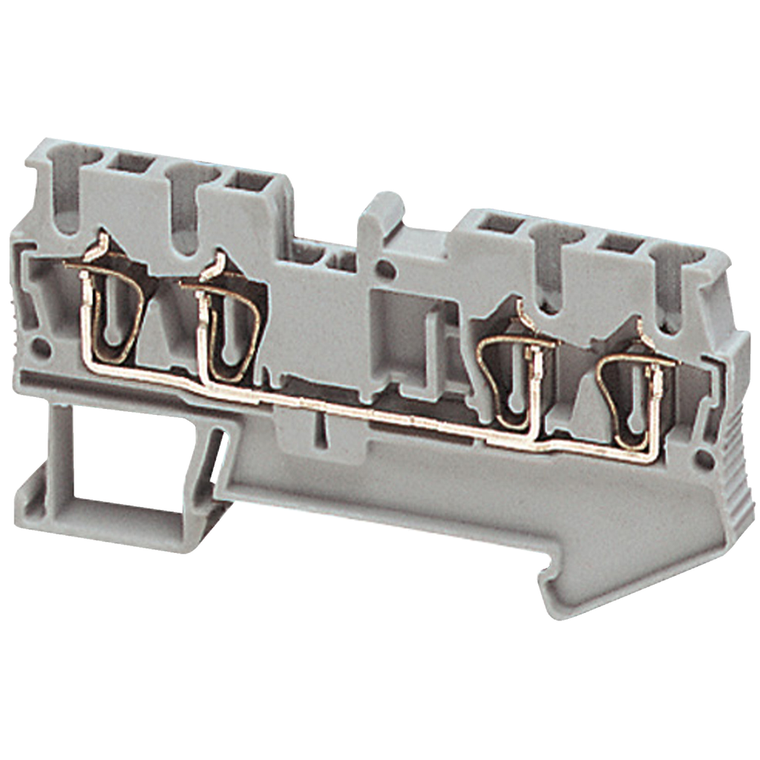

Schneider Electric NSYTRR24 Spring Terminal, Feed Through, 4 Points, Pack of 50
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus and 800V conforming to EN/IEC 60947-7-1. The rated current is 192A conforming to EN/IEC 60947-7-1 and 192A conforming to CSA and cURus. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).
- Width:
- 5.2 mm
- Eu Rohs Directive:
- Compliant
- Dielectric Strength:
- 1000 V IEC 60243-1
- Material:
- polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring
- Range:
- Linergy
- Color:
- Gray
- Rohs Exemption Information:
- Yes
- Product Certifications:
- CSA || IEC-Ex || LR || EAC || cURus || DNV || ATEX || GL || VDE
- Surface Resistance:
- 1000 G⦠IEC 60093 || 1000 G⦠VDE 0303-T30
- Dielectric Loss:
- 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
- Mercury Free:
- Yes
- Dielectric Constant:
- 3.7 at 1 MHz
- Number Of Terminals:
- 4
- Accessory / Separate Part Category:
- connection accessory
- Length:
- 72 mm
- [Ue] Rated Operational Voltage:
- 600 V CSA || 800 V EN/IEC 60947-7-1 || 600 V cURus
- Height:
- 36.5 mm
- Wire Stripping Length:
- 10 mm
- Nominal Cross Section:
- 2.5 mm²
- Sustainable Offer Status:
- Green Premium product
- Connections - Terminals:
- 2 x spring terminal downstream || 2 x spring terminal upstream
- Net Weight:
- 8.5 g
- Mounting Mode:
- clip-on
- Tool Type:
- connection flat screwdriver || disconnection flat screwdriver
- Environmental Disclosure:
- ENVPEP2309017EN
- Quantity Per Set:
- set of 50
- Range Compatibility:
- Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
- Creep Resistance:
- 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Circularity Profile:
- N/A
- Product Name:
- Linergy TR
- Toxic Heavy Metal Free:
- Yes
- Ambient Air Temperature For Operation:
- -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
- Cable Cross Section:
- 0.08-2.5 mm², flexible without cable end || 0.08-4 mm², solid with cable end || 0.2-2.5 mm², flexible with cable end || 0.08-4 mm², solid without cable end
- Flame Retardance:
- V0 0.8 mm UL 94
- Product Compatibility:
- Spacial enclosures
- Product Or Component Type:
- terminal block
- Reach Free Of Svhc:
- Yes
- Halogen Content Performance:
- Halogen free plastic parts product
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Terminal Block Type:
- passthrough
- Resistivity:
- 10000 Mâ¦.m IEC 60093 || 10000 Mâ¦.m VDE 0303-T30
- Line Rated Current:
- 20-20 A CSA || 20-20 A cURus || 24-24 A EN/IEC 60947-7-1
- Device Short Name:
- TRR
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Warranty:
- 18 months
- Connection Position:
- top
- Terminal Block Level:
- 1
- Number Of Measurement Input:
- 2
