Schneider Electric

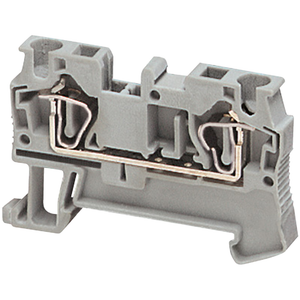

Schneider Electric NSYTRR42BL Spring Terminal, Feed Through, 2 Points, Pack of 50

SKU:

NSYTRR42BL

UPC:

3.60648E+12

MPN:

Condition:

New

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Terminal Block Type:

passthrough

Surface Resistance:

1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30

Resistivity:

10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30

Toxic Heavy Metal Free:

Yes

Number Of Measurement Input:

2

Net Weight:

6.5 g

Flame Retardance:

V0 0.8 mm UL 94

Connection Position:

top

Halogen Content Performance:

Halogen free plastic parts product

Environmental Disclosure:

ENVPEP2309017EN

Width:

6.2 mm

Rohs Exemption Information:

Yes

Color:

Blue

Range:

Linergy

Sustainable Offer Status:

Green Premium product

Circularity Profile:

N/A

Device Short Name:

TRR

Range Compatibility:

Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys

[Ue] Rated Operational Voltage:

600 V CSA || 800 V EN/IEC 60947-7-1 || 600 V cURus

Quantity Per Set:

set of 50

Line Rated Current:

32-32 A EN/IEC 60947-7-1 || 30-30 A CSA || 30-30 A cURus

Tool Type:

connection flat screwdriver || disconnection flat screwdriver

Length:

56 mm

Creep Resistance:

500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Material:

polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring

Number Of Terminals:

2

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Ambient Air Temperature For Operation:

-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21

Accessory / Separate Part Category:

connection accessory

Connections - Terminals:

1 x spring terminal upstream || 1 x spring terminal downstream

Product Or Component Type:

terminal block

Product Compatibility:

Spacial enclosures

Wire Stripping Length:

10 mm

Reach Free Of Svhc:

Yes

Terminal Block Level:

1

Product Name:

Linergy TR

Mounting Mode:

clip-on

Dielectric Loss:

0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4

Product Certifications:

EAC || VDE || IEC-Ex || GL || CSA || LR || ATEX || DNV || cURus

Dielectric Constant:

3.7 at 1 MHz

Height:

36.5 mm

Cable Cross Section:

0.08-4 mm², solid without cable end || 0.08-4 mm², flexible without cable end || 0.08-6 mm², solid with cable end || 0.2-4 mm², flexible with cable end

Mercury Free:

Yes

Dielectric Strength:

1000 V IEC 60243-1

Nominal Cross Section:

4 mm²

Warranty:

18 months
