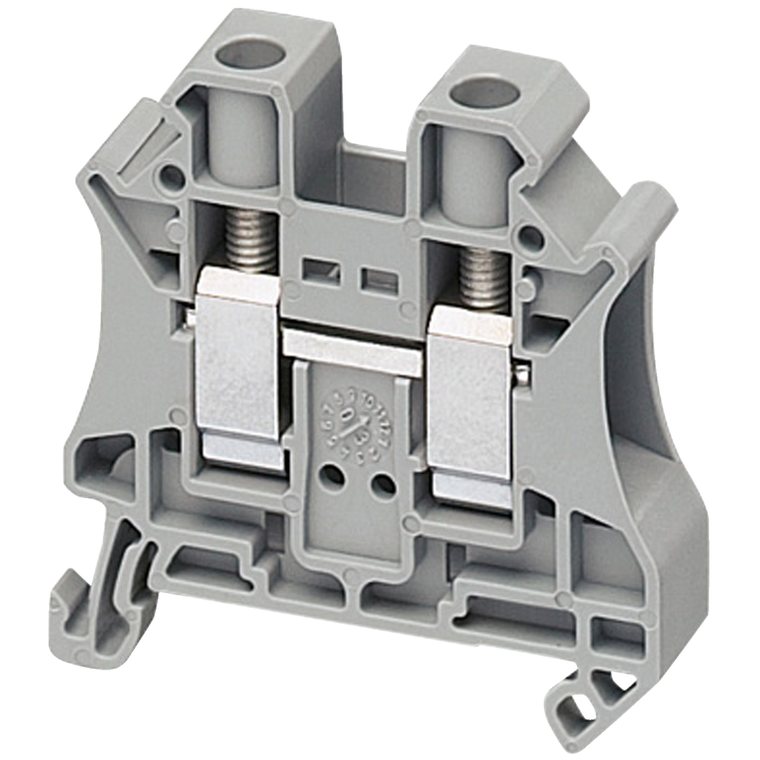

Schneider Electric NSYTRV102 Screw Terminal, Feed Through, 2 Points, Pack of 50

Schneider Electric NSYTRV102 Screw Terminal, Feed Through, 2 Points, Pack of 50

Schneider Electric
SKU:
NSYTRV102
|
UPC:
3.60648E+12
$135.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 10 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1 and 690V conforming to ATEX Exe II Ex II 2 GD. The rated current is 57A conforming to EN/IEC 60947-7-1, 65A conforming to CSA/cURus and 54A conforming to ATEX Exe II Ex II 2 GD. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).
Additional Information
Product Or Component Type:
terminal block
Surface Resistance:
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
Connection Position:
sideways
Nominal Cross Section:
10 mm²
Device Short Name:
TRV
Warranty:
18 months
Accessory / Separate Part Category:
connection accessory
Net Weight:
18 g
Tool Type:
connection screwdriver || disconnection screwdriver
Number Of Measurement Input:
2
Creep Resistance:
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
Dielectric Constant:
3.7 at 1 MHz
Wire Stripping Length:
10 mm
Terminal Block Level:
1
Line Rated Current:
57-57 A EN/IEC 60947-7-1 || 65-65 A cURus || 65-65 A CSA || 54-54 A ATEX Exe II Ex II 2 GD
Mercury Free:
Yes
Height:
47.5 mm
Dielectric Loss:
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
Halogen Content Performance:
Halogen free plastic parts product
Circularity Profile:
N/A
Rohs Exemption Information:
Yes
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Cable Cross Section:
0.2-10 mm², solid with cable end || 0.2-10 mm², flexible with cable end || 0.5-16 mm², solid without cable end || 0.5-16 mm², flexible without cable end
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product Certifications:
IEC-Ex || LR || VDE || EAC || DNV || GL || cURus || ATEX || CSA
Product Name:
Linergy TR
Eu Rohs Directive:
Compliant with Exemptions
Connections - Terminals:
1 x screw terminal upstream M4) || 1 x screw terminal downstream M4)
Mounting Mode:
clip-on
Quantity Per Set:
set of 50
Width:
10.2 mm
Product Compatibility:
Spacial enclosures
Length:
47.7 mm
Material:
polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring
Tightening Torque:
1.5-1.8 N.m
Ambient Air Temperature For Operation:
-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
Range:
Linergy
Resistivity:
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Dielectric Strength:
1000 V IEC 60243-1
Range Compatibility:
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
Color:
Gray
[Ue] Rated Operational Voltage:
1000 V EN/IEC 60947-7-1 || 600 V CSA || 690 V ATEX Exe II Ex II 2 GD || 600 V cURus
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Flame Retardance:
V0 0.8 mm UL 94
Number Of Terminals:
2
Sustainable Offer Status:
Green Premium product
Terminal Block Type:
passthrough
Environmental Disclosure:
ENVPEP2309018EN
