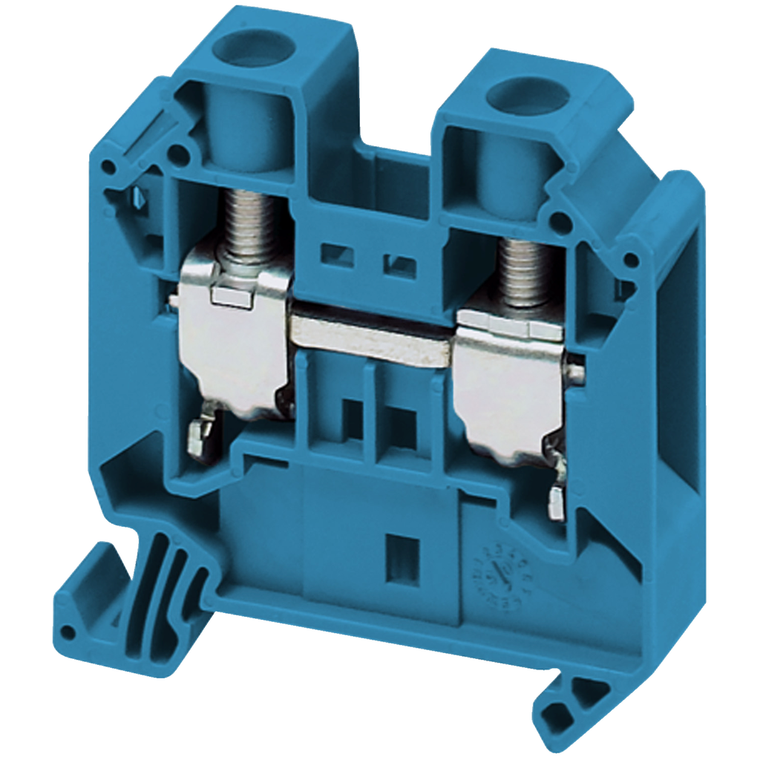

Schneider Electric NSYTRV162BL Screw Terminal, Feed Through, 2 Points, Pack of 50

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTRV162BL Screw Terminal, Feed Through, 2 Points, Pack of 50

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTRV162BL

UPC:

3.60648E+12

MPN:

Condition:

New

Wire Stripping Length:

14 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Surface Resistance:

1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30

Device Short Name:

TRV

Length:

55.5 mm

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Dielectric Constant:

3.7 at 1 MHz

Net Weight:

30 g

Color:

Blue

Number Of Measurement Input:

2

Product Compatibility:

Spacial enclosures

Rohs Exemption Information:

Yes

Material:

polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring

Width:

12.2 mm

Eu Rohs Directive:

Compliant

Connection Position:

sideways

Halogen Content Performance:

Halogen free plastic parts product

Environmental Disclosure:

ENVPEP2309018EN

Product Certifications:

ATEX || DNV || VDE || EAC || cURus || CSA || GL || LR || IEC-Ex

Circularity Profile:

N/A

Mounting Mode:

clip-on

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Reach Free Of Svhc:

Yes

Range Compatibility:

Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys

Product Or Component Type:

terminal block

Terminal Block Type:

passthrough

Tool Type:

connection screwdriver || disconnection screwdriver

Connections - Terminals:

1 x screw terminal upstream M5) || 1 x screw terminal downstream M5)

Accessory / Separate Part Category:

connection accessory

Toxic Heavy Metal Free:

Yes

Dielectric Strength:

1000 V IEC 60243-1

Warranty:

18 months

[Ue] Rated Operational Voltage:

1000 V EN/IEC 60947-7-1 || 600 V CSA || 690 V ATEX Exe II Ex II 2 GD || 600 V cURus

Resistivity:

10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30

Creep Resistance:

500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30

Number Of Terminals:

2

Line Rated Current:

76-76 A EN/IEC 60947-7-1 || 85-85 A cURus || 85-85 A CSA || 73-73 A ATEX Exe II Ex II 2 GD

Flame Retardance:

V0 0.8 mm UL 94

Nominal Cross Section:

16 mm²

Dielectric Loss:

0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4

Terminal Block Level:

1

Range:

Linergy

Tightening Torque:

2.5-3 N.m

Quantity Per Set:

set of 50

Ambient Air Temperature For Operation:

-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21

Height:

55 mm

Mercury Free:

Yes

Cable Cross Section:

0.2-10 mm², flexible with cable end || 0.2-16 mm², solid with cable end || 1.5-25 mm², solid without cable end || 1.5-25 mm², flexible without cable end

Sustainable Offer Status:

Green Premium product

Product Name:

Linergy TR
