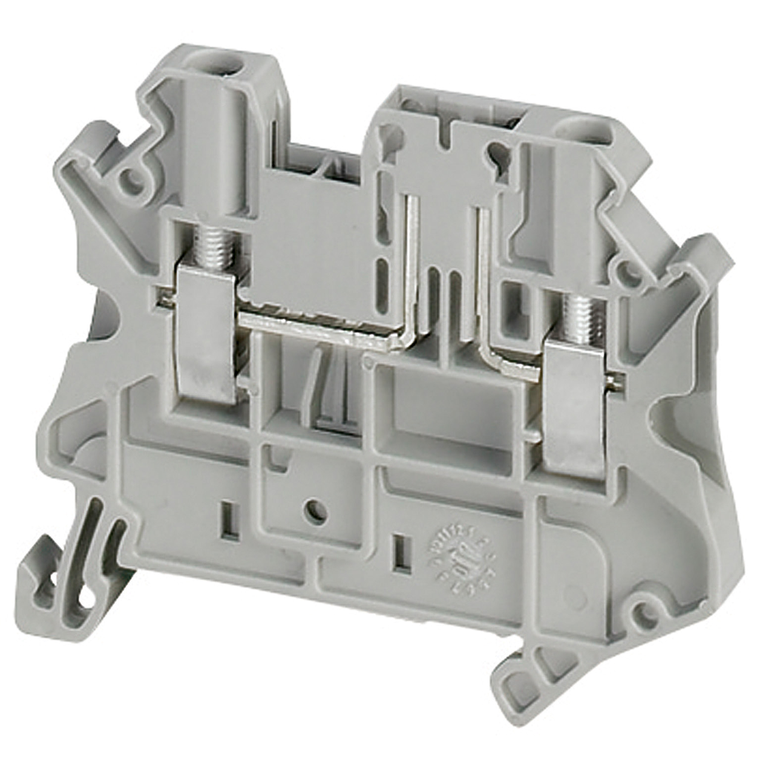

Schneider Electric NSYTRV22TB Screw Terminal, Basic Disconnect Termina Pack of 50

Schneider Electric NSYTRV22TB Screw Terminal, Basic Disconnect Termina Pack of 50

Schneider Electric
SKU:
NSYTRV22TB
|
UPC:
3606480794247
$307.50
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Terminal block, spring type, basic disconnect terminal, 2 points, 2.5mm², grey
Additional Information
Color:
Gray
Connection Position:
sideways
Tightening Torque:
0.5-0.6 N.m
Surface Resistance:
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
Sustainable Offer Status:
Green Premium product
Device Short Name:
TRV
Ambient Air Temperature For Operation:
-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Or Component Type:
terminal block
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Terminal Block Type:
removable carrier disconnect
Width:
5.2 mm
Cable Cross Section:
0.14-4 mm², flexible without cable end || 0.14-4 mm², solid
Fuse Size:
6 x 32 mm || 5 x 20 mm
[Ue] Rated Operational Voltage:
500 V EN/IEC 60947-7-1 || 600 V CSA || 600 V cURus
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Resistivity:
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Dielectric Constant:
3.7 at 1 MHz
Rohs Exemption Information:
Yes
Environmental Disclosure:
ENVPEP2309018EN
Quantity Per Set:
set of 50
Terminal Block Level:
1
Wire Stripping Length:
9 mm
Dielectric Strength:
1000 V IEC 60243-1
Product Certifications:
cURus || CSA || EAC
Range Compatibility:
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
Connections - Terminals:
1 x screw terminal upstream || 1 x screw terminal downstream
Product Name:
Linergy TR
Length:
57.8 mm
Number Of Measurement Input:
1
Circularity Profile:
N/A
Flame Retardance:
V0 0.8 mm UL 94
Dielectric Loss:
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
Nominal Cross Section:
2.5 mm²
Eu Rohs Directive:
Compliant with Exemptions
Material:
polyamide 6/6: insulating case
Creep Resistance:
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
Line Rated Current:
20-20 A EN/IEC 60947-7-1 || 16-16 A cURus
Mounting Mode:
clip-on
Net Weight:
11 g
Range:
Linergy
Product Compatibility:
Spacial enclosures
Number Of Terminals:
2
Mercury Free:
Yes
Associated Connection Component:
diode || cylindrical fuse || blade
Tool Type:
connection screwdriver || disconnection screwdriver
Height:
47.5 mm
Catalog:
View
Datasheet:
View
