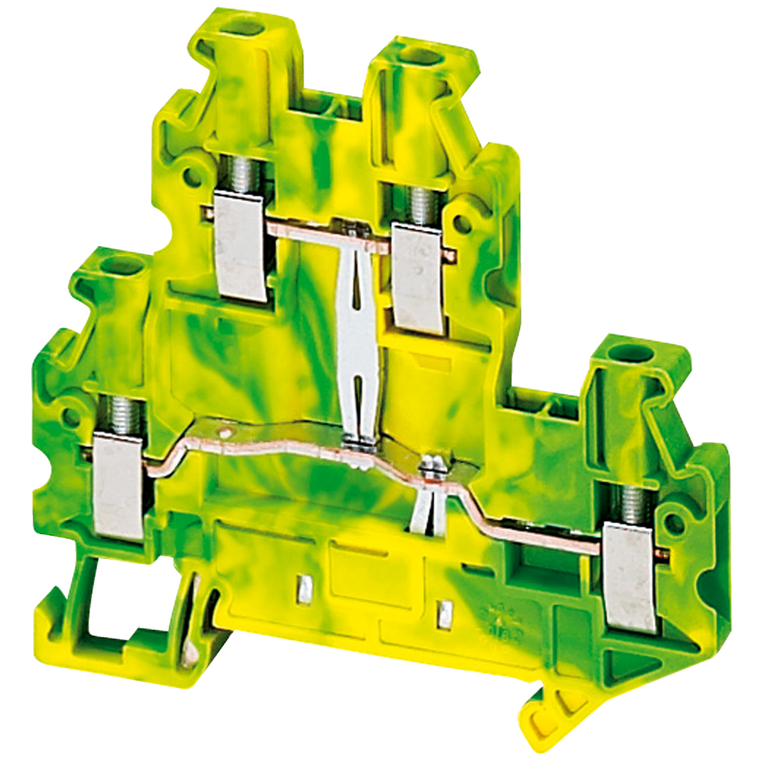

Schneider Electric NSYTRV24DPE Screw Terminal, Protect,2Lv, 4Pts,2,5Mm2 Pack of 50

(No reviews yet) Write a Review
SKU:
NSYTRV24DPE
UPC:
3.60648E+12
Condition:
New
Halogen Content Performance:
Halogen free plastic parts product
Width:
5.2 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty:
18 months
Quantity Per Set:
set of 50
Range:
Linergy
Length:
69.9 mm
Height:
65 mm
Number Of Measurement Input:
4
Mercury Free:
Yes
Tightening Torque:
0.5-0.6 N.m
Connections - Terminals:
1 x screw terminal upstream || 1 x screw terminal downstream
Dielectric Strength:
1000 V IEC 60243-1
Range Compatibility:
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
Circularity Profile:
N/A
Cable Cross Section:
0.14-4 mm², solid || 0.2-2.5 mm², flexible with cable end || 0.14-4 mm², flexible without cable end
Flame Retardance:
V0 0.8 mm UL 94
Sustainable Offer Status:
Green Premium product
Number Of Terminals:
2
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Terminal Block Level:
2
Surface Resistance:
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
Product Certifications:
ATEX || CSA || DNV || EAC || LR || IEC-Ex || cURus || GL
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mounting Mode:
clip-on
Product Or Component Type:
terminal block
Resistivity:
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Nominal Cross Section:
2.5 mm²
Material:
polyamide 6/6: insulating case
Tool Type:
connection screwdriver || disconnection screwdriver
Color:
green-yellow
Eu Rohs Directive:
Compliant with Exemptions
Net Weight:
21 g
Ambient Air Temperature For Operation:
-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
Device Short Name:
TRV
Product Compatibility:
Spacial enclosures
Dielectric Constant:
3.7 at 1 MHz
Product Name:
Linergy TR
Creep Resistance:
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
Dielectric Loss:
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
Connection Position:
sideways
Rohs Exemption Information:
Yes
Wire Stripping Length:
9 mm
Terminal Block Type:
protective earth
Environmental Disclosure:
ENVPEP2309022EN
Catalog:
View
Datasheet:
View
  • Schneider Electric NSYTRV24DPE Screw Terminal, Protect,2Lv, 4Pts,2,5Mm2 Pack of 50
  • Schneider Electric NSYTRV24DPE Screw Terminal, Protect,2Lv, 4Pts,2,5Mm2 Pack of 50
$700.00

Description

Terminal block, Linergy TR, green-yellow, 2.5mm2, 2 level connt, protective earth, 4 points, Set of 50
