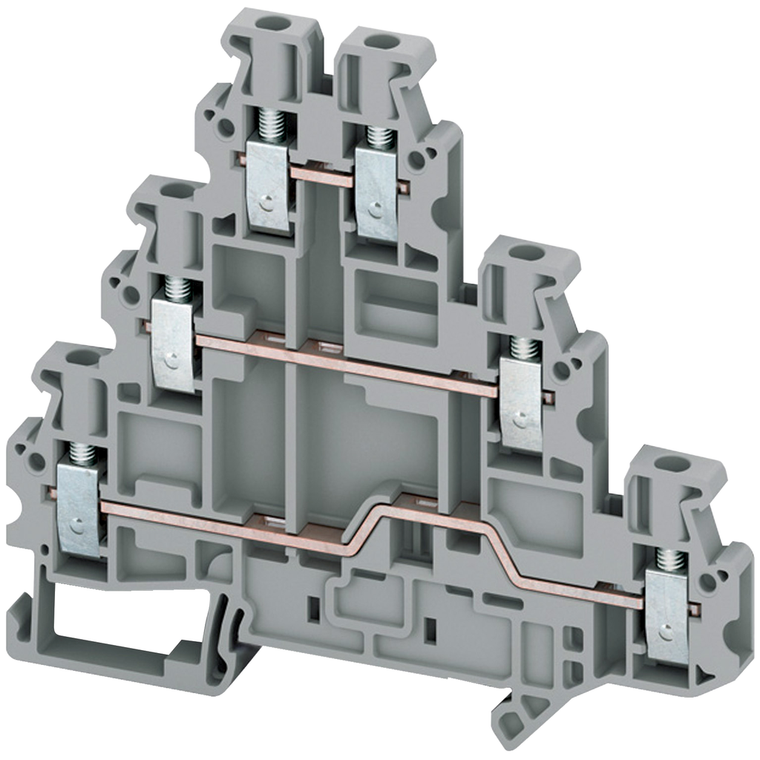

Schneider Electric NSYTRV26T Screw Terminal,3 Level, 6Pts,2,5Mma Pack of 50

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric NSYTRV26T Screw Terminal,3 Level, 6Pts,2,5Mma Pack of 50

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTRV26T

UPC:

3606480531880

MPN:

Condition:

New

Tightening Torque:

0.5-0.6 N.m

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Rohs Exemption Information:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Compatibility:

Spacial enclosures

Product Name:

Linergy TR

Material:

polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring

Dielectric Loss:

0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4

Quantity Per Set:

set of 50

Line Rated Current:

20-20 A EN/IEC 60947-7-1

Connection Position:

sideways

Length:

90 mm

Tool Type:

connection screwdriver || disconnection screwdriver

Terminal Block Type:

passthrough

Cable Cross Section:

0.14-4 mm², solid with cable end || 0.2-2.5 mm², flexible with cable end || 0.14-4 mm², solid without cable end || 0.14-4 mm², flexible without cable end

Color:

Gray

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Or Component Type:

terminal block

Number Of Terminals:

2

Flame Retardance:

V0 0.8 mm UL 94

Ambient Air Temperature For Operation:

-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Circularity Profile:

N/A

Mercury Free:

Yes

Resistivity:

10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30

Product Certifications:

EAC || CSA || cURus

Environmental Disclosure:

ENVPEP2309018EN

Net Weight:

25.1 g

Eu Rohs Directive:

Compliant with Exemptions

Connections - Terminals:

1 x screw terminal upstream M3) || 1 x screw terminal downstream M3)

Halogen Content Performance:

Halogen free plastic parts product

Creep Resistance:

500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30

Accessory / Separate Part Category:

connection accessory

[Ue] Rated Operational Voltage:

500 V EN/IEC 60947-7-1

Dielectric Constant:

3.7 at 1 MHz

Range:

Linergy

Number Of Measurement Input:

3

Sustainable Offer Status:

Green Premium product

Warranty:

18 months

Nominal Cross Section:

2.5 mm²

Terminal Block Level:

3

Mounting Mode:

clip-on

Wire Stripping Length:

9 mm

Width:

5.2 mm

Range Compatibility:

Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys

Dielectric Strength:

1000 V IEC 60243-1

Surface Resistance:

1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30

Height:

77.5 mm

Device Short Name:

TRV
