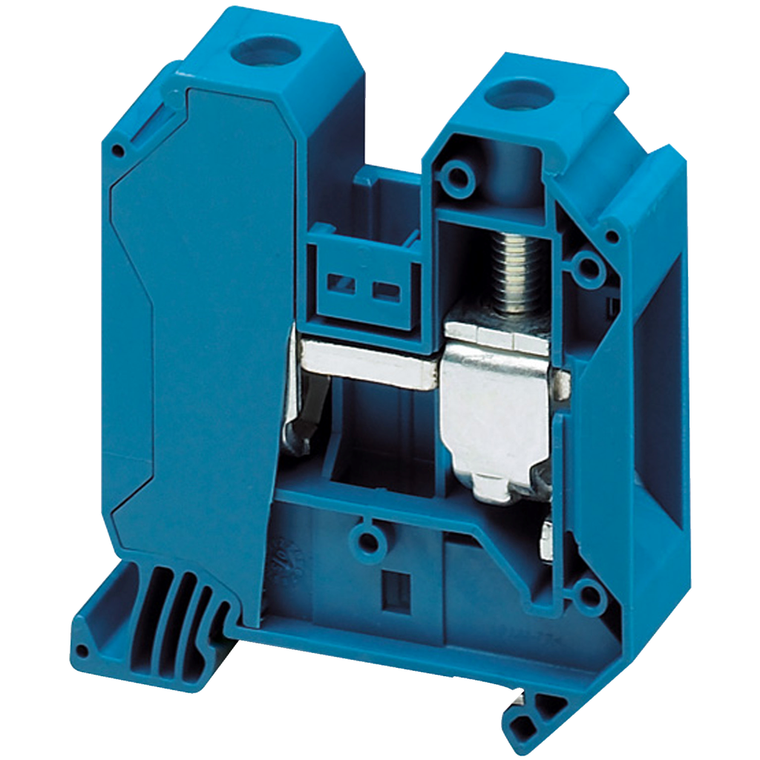

Schneider Electric NSYTRV352BL Screw Terminal, Feed Through, 2 Points, Pack of 50
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 35 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1 and 690V conforming to ATEX Exe II Ex II 2 GD. The rated current is 125A conforming to EN/IEC 60947-7-1, 150A conforming to CSA/cURus and 126A conforming to ATEX Exe II Ex II 2 GD. It has blue surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, GL, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Warranty:
- 18 months
- Tightening Torque:
- 3.2-3.7 N.m
- Width:
- 16 mm
- Wire Stripping Length:
- 18 mm
- Range Compatibility:
- Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
- Sustainable Offer Status:
- Green Premium product
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Dielectric Strength:
- 1000 V IEC 60243-1
- Connection Position:
- sideways
- Flame Retardance:
- V0 0.8 mm UL 94
- Rohs Exemption Information:
- Yes
- Environmental Disclosure:
- ENVPEP2309018EN
- Connections - Terminals:
- 1 x screw terminal upstream M6) || 1 x screw terminal downstream M6)
- Color:
- Blue
- Tool Type:
- connection screwdriver || disconnection screwdriver
- Line Rated Current:
- 125-125 A EN/IEC 60947-7-1 || 150-150 A cURus || 150-150 A CSA || 126-126 A ATEX Exe II Ex II 2 GD
- Surface Resistance:
- 1000 G⦠IEC 60093 || 1000 G⦠VDE 0303-T30
- Eu Rohs Directive:
- Compliant
- Dielectric Loss:
- 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
- Quantity Per Set:
- set of 50
- Halogen Content Performance:
- Halogen free plastic parts product
- Device Short Name:
- TRV
- Net Weight:
- 61 g
- Mercury Free:
- Yes
- Range:
- Linergy
- Terminal Block Level:
- 1
- Accessory / Separate Part Category:
- connection accessory
- Creep Resistance:
- 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
- Reach Free Of Svhc:
- Yes
- Product Compatibility:
- Spacial enclosures
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Terminal Block Type:
- passthrough
- Resistivity:
- 10000 Mâ¦.m IEC 60093 || 10000 Mâ¦.m VDE 0303-T30
- Number Of Terminals:
- 2
- Product Name:
- Linergy TR
- Cable Cross Section:
- 1.5-50 mm², flexible without cable end || 1.5-50 mm², solid with cable end || 1.5-50 mm², flexible with cable end || 1.5-50 mm², solid without cable end
- Circularity Profile:
- N/A
- Height:
- 65.7 mm
- Toxic Heavy Metal Free:
- Yes
- Product Or Component Type:
- terminal block
- Mounting Mode:
- clip-on
- Material:
- polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring
- [Ue] Rated Operational Voltage:
- 1000 V EN/IEC 60947-7-1 || 600 V CSA || 690 V ATEX Exe II Ex II 2 GD || 600 V cURus
- Dielectric Constant:
- 3.7 at 1 MHz
- Length:
- 60.2 mm
- Nominal Cross Section:
- 35 mm²
- Number Of Measurement Input:
- 2
- Ambient Air Temperature For Operation:
- -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
- Product Certifications:
- IEC-Ex || EAC || cURus || GL || CSA || VDE || ATEX
