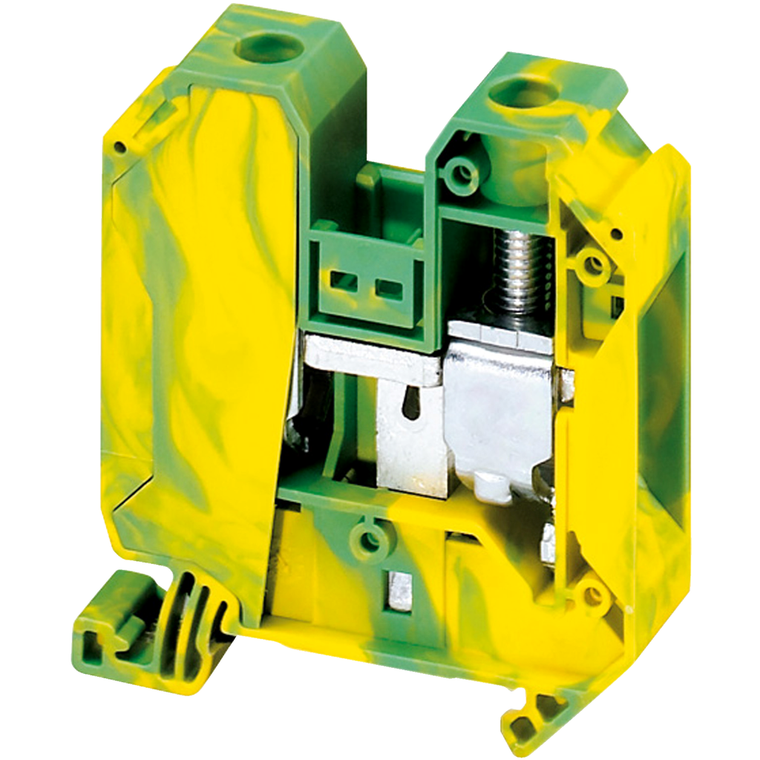

Schneider Electric NSYTRV352PE Screw Terminal, Protective Earth, 2 Poin Pack of 50

Schneider Electric NSYTRV352PE Screw Terminal, Protective Earth, 2 Poin Pack of 50

Schneider Electric
SKU:
NSYTRV352PE
|
UPC:
3606480532177
Availability:
Contact us to confirm availability and lead times.
$660.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
Linergy TR is terminal block for Linergy. It belongs to linergy earth terminal block with 35 mm² nominal cross section. It has green-yellow surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, GL, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).
Additional Information
Warranty:
18 months
Eu Rohs Directive:
Compliant
Dielectric Constant:
3.7 at 1 MHz
Product Compatibility:
Spacial enclosures
Connection Position:
sideways
Line Rated Current:
125-125 A EN/IEC 60947-7-1
Height:
60.2 mm
Wire Stripping Length:
18 mm
Dielectric Strength:
1000 V IEC 60243-1
Environmental Disclosure:
ENVPEP2309022EN
Ambient Air Temperature For Operation:
-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
Tool Type:
connection screwdriver || disconnection screwdriver
Creep Resistance:
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
Circularity Profile:
N/A
Reach Free Of Svhc:
Yes
Number Of Measurement Input:
2
Terminal Block Level:
1
Color:
green-yellow
Resistivity:
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Product Certifications:
VDE || EAC || CSA || cURus || IEC-Ex || GL || ATEX
Length:
65.7 mm
Halogen Content Performance:
Halogen free plastic parts product
Cable Cross Section:
1.5-50 mm², solid || 2.5-35 mm², flexible with cable end || 1.5-50 mm², flexible without cable end
Quantity Per Set:
set of 50
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Mercury Free:
Yes
Connections - Terminals:
1 x screw terminal upstream || 1 x screw terminal downstream
Mounting Mode:
clip-on
Product Or Component Type:
terminal block
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Net Weight:
85.79 g
Nominal Cross Section:
35 mm²
Product Name:
Linergy TR
Device Short Name:
TRV
Rohs Exemption Information:
Yes
Dielectric Loss:
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
Terminal Block Type:
protective earth
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Range:
Linergy
Tightening Torque:
3.2-3.7 N.m
Range Compatibility:
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
Width:
16 mm
Material:
polyamide 6/6: insulating case
Flame Retardance:
V0 0.8 mm UL 94
Number Of Terminals:
2
Sustainable Offer Status:
Green Premium product
Surface Resistance:
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
Toxic Heavy Metal Free:
Yes
