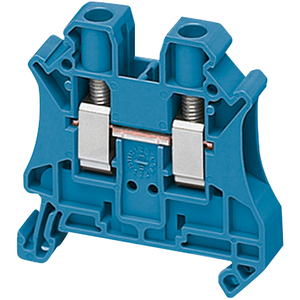

Schneider Electric NSYTRV42 Screw Terminal, Feed Through, 2 Points, Pack of 50
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Linergy terminal blocks offer three terminal block technologies. The traditional screw connection, the spring clamp connection, and the new pushin connection. The industrial control, machine tool, packaging, material hadling, HVAC, textile, hoisting, water, marine, critiical power, elevator industries and many more use these terminal blocks for their connection requirements. These terminal blocks are designed for fast and easy installation. A wide variety of accessories are availble for these blocks to make your total installation easier. Linergy terminal blocks meet international standards, including UL Component Recognition and CSA certification. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).
- Warranty:
- 18 months
- Flame Retardance:
- V0 0.8 mm UL 94
- Terminal Block Level:
- 1
- Material:
- polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Range Compatibility:
- Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
- Product Compatibility:
- Spacial enclosures
- Product Or Component Type:
- terminal block
- Quantity Per Set:
- set of 50
- Environmental Disclosure:
- ENVPEP2309018EN
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Mercury Free:
- Yes
- Product Certifications:
- cURus || VDE || IEC-Ex || ATEX || GL || EAC || LR || CSA || DNV
- Width:
- 6.2 mm
- Dielectric Constant:
- 3.7 at 1 MHz
- Line Rated Current:
- 32-32 A EN/IEC 60947-7-1 || 30-30 A CSA || 30-30 A ATEX Exe II Ex II 2 GD || 30-30 A cURus
- Terminal Block Type:
- passthrough
- Resistivity:
- 10000 Mâ¦.m IEC 60093 || 10000 Mâ¦.m VDE 0303-T30
- Cable Cross Section:
- 0.14-6 mm², solid with cable end || 0.2-4 mm², flexible with cable end || 0.2-6 mm², solid without cable end || 0.2-6 mm², flexible without cable end
- Dielectric Strength:
- 1000 V IEC 60243-1
- Sustainable Offer Status:
- Green Premium product
- Wire Stripping Length:
- 9 mm
- Height:
- 47.5 mm
- Range:
- Linergy
- [Ue] Rated Operational Voltage:
- 1000 V EN/IEC 60947-7-1 || 600 V CSA || 690 V ATEX Exe II Ex II 2 GD || 600 V cURus
- Circularity Profile:
- N/A
- Device Short Name:
- TRV
- Mounting Mode:
- clip-on
- Surface Resistance:
- 1000 G⦠IEC 60093 || 1000 G⦠VDE 0303-T30
- Eu Rohs Directive:
- Compliant with Exemptions
- Tightening Torque:
- 0.6-0.8 N.m
- Number Of Terminals:
- 2
- Rohs Exemption Information:
- Yes
- Nominal Cross Section:
- 4 mm²
- Length:
- 47.7 mm
- Product Name:
- Linergy TR
- Connections - Terminals:
- 1 x screw terminal upstream M3) || 1 x screw terminal downstream M3)
- Creep Resistance:
- 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
- Accessory / Separate Part Category:
- connection accessory
- Color:
- Gray
- Dielectric Loss:
- 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
- Number Of Measurement Input:
- 2
- Halogen Content Performance:
- Halogen free plastic parts product
- Connection Position:
- sideways
- Tool Type:
- connection screwdriver || disconnection screwdriver
- Ambient Air Temperature For Operation:
- -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
- Net Weight:
- 9.4 g
