Product out of China RoHS scope. Substance declaration for your information.
[Ue] Rated Operational Voltage:
600 V CSA || 500 V EN/IEC 60947-7-1 || 600 V cURus || 500 V ATEX Exe II Ex II 2 GD
Width:
6.2 mm
Rohs Exemption Information:
Yes
Product Compatibility:
Spacial enclosures
Dielectric Constant:
3.7 at 1 MHz
Cable Cross Section:
0.2-4 mm², flexible with cable end || 0.2-6 mm², solid without cable end || 0.2-6 mm², flexible without cable end || 0.2-4 mm², solid with cable end
Sustainable Offer Status:
Green Premium product
Product Name:
Linergy TR
Connection Position:
sideways
Nominal Cross Section:
4 mm²
Resistivity:
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Accessory / Separate Part Category:
connection accessory
Product Certifications:
VDE || EAC || IEC-Ex || CSA || cURus || ATEX
Product Or Component Type:

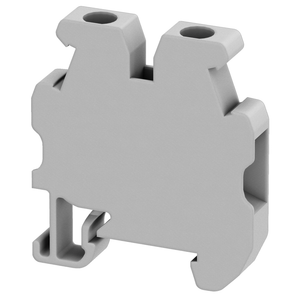

mini terminal block
Flame Retardance:
V0 0.8 mm UL 94
Height:
34 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Range:
Linergy
Dielectric Loss:
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
Eu Rohs Directive:
Compliant with Exemptions
Line Rated Current:
32-32 A EN/IEC 60947-7-1 || 30-30 A CSA || 30-30 A ATEX Exe II Ex II 2 GD || 30-30 A cURus
