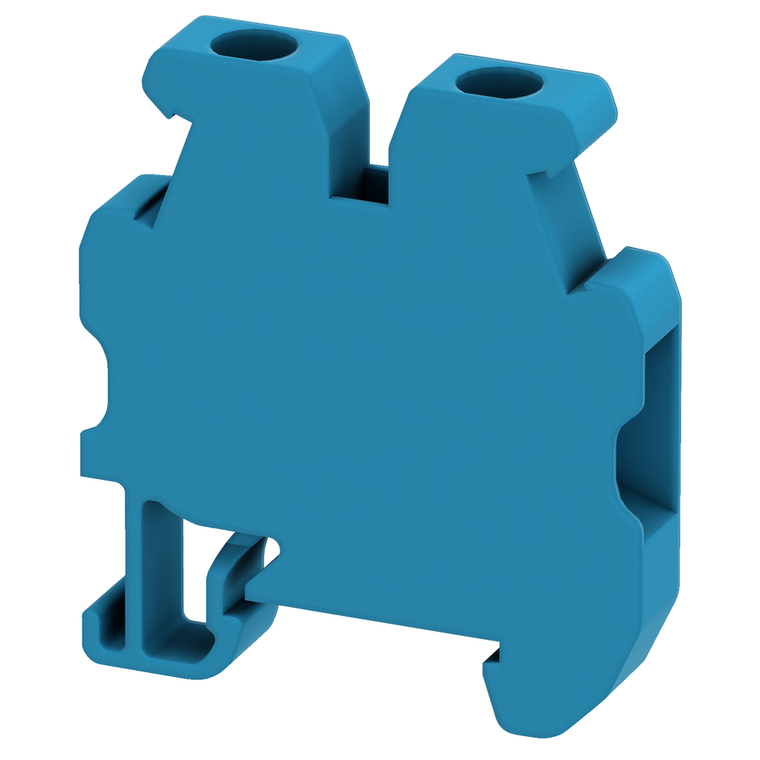

Schneider Electric NSYTRV42MBL Screw Terminal, Mini, For 15Mm Din Rail, Pack of 50

Schneider Electric NSYTRV42MBL Screw Terminal, Mini, For 15Mm Din Rail, Pack of 50

Schneider Electric
SKU:
NSYTRV42MBL
|
UPC:
3606480532481
$127.50
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
SCREW TERMINAL, MINI, FOR 15MM DIN RAIL, FEED THROUGH, 2 POINTS, 4MM²
Additional Information
Color:
Blue
Material:
polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring
Mercury Free:
Yes
Connections - Terminals:
1 x screw terminal upstream M3) || 1 x screw terminal downstream M3)
Dielectric Loss:
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
Circularity Profile:
N/A
Height:
34 mm
Range:
Linergy
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Range Compatibility:
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
Device Short Name:
TRV
Rohs Exemption Information:
Yes
Number Of Measurement Input:
1
Product Name:
Linergy TR
Width:
6.2 mm
Product Compatibility:
Spacial enclosures
Number Of Terminals:
2
Creep Resistance:
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Line Rated Current:
32-32 A EN/IEC 60947-7-1 || 30-30 A CSA || 30-30 A ATEX Exe II Ex II 2 GD || 30-30 A cURus
Quantity Per Set:
set of 50
Length:
30 mm
Environmental Disclosure:
ENVPEP2309018EN
Terminal Block Type:
passthrough
Product Or Component Type:
mini terminal block
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Tightening Torque:
0.6-0.8 N.m
Accessory / Separate Part Category:
connection accessory
Surface Resistance:
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
Sustainable Offer Status:
Green Premium product
[Ue] Rated Operational Voltage:
600 V CSA || 500 V EN/IEC 60947-7-1 || 600 V cURus || 500 V ATEX Exe II Ex II 2 GD
Flame Retardance:
V0 0.8 mm UL 94
Mounting Mode:
clip-on
Cable Cross Section:
0.2-4 mm², flexible with cable end || 0.2-6 mm², solid without cable end || 0.2-6 mm², flexible without cable end || 0.2-4 mm², solid with cable end
Wire Stripping Length:
8 mm
Dielectric Strength:
1000 V IEC 60243-1
Tool Type:
connection screwdriver || disconnection screwdriver
Terminal Block Level:
1
Product Certifications:
cURus || IEC-Ex || EAC || ATEX || CSA || VDE
Dielectric Constant:
3.7 at 1 MHz
Nominal Cross Section:
4 mm²
Connection Position:
sideways
Ambient Air Temperature For Operation:
-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
Resistivity:
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
