Schneider Electric

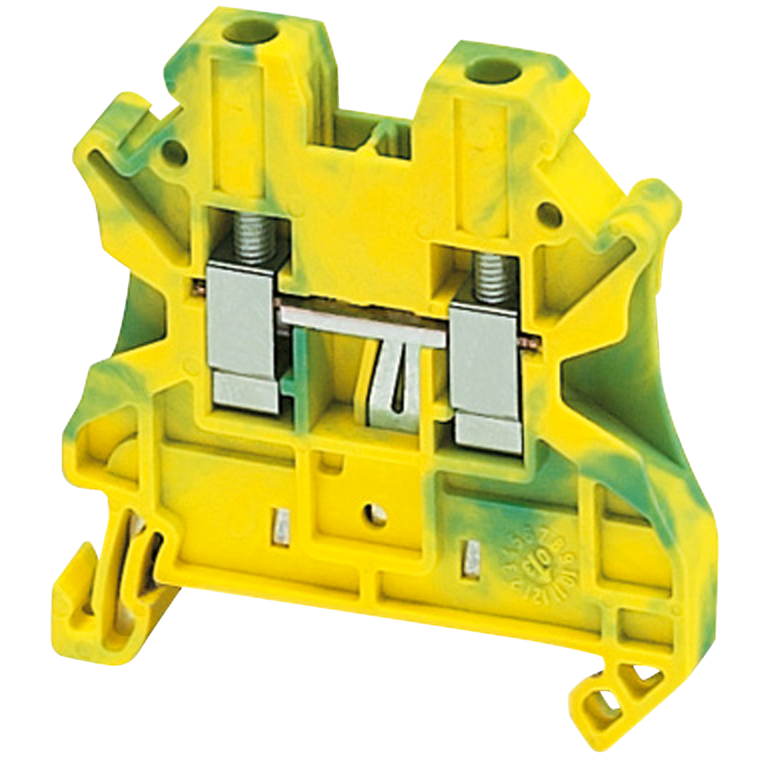

Schneider Electric NSYTRV42PE Screw Terminal, Protection, 2Pts,4Mma

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric NSYTRV42PE Screw Terminal, Protection, 2Pts,4Mma

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTRV42PE

UPC:

3606480531965

MPN:

Condition:

New

Circularity Profile:

N/A

Environmental Disclosure:

ENVPEP2309022EN

Number Of Terminals:

2

Product Or Component Type:

terminal block

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Net Weight:

13.38 g

Warranty:

18 months

Mercury Free:

Yes

Tool Type:

connection screwdriver || disconnection screwdriver

Eu Rohs Directive:

Compliant with Exemptions

Cable Cross Section:

0.14-6 mm², solid || 0.2-4 mm², flexible with cable end || 0.14-6 mm², flexible without cable end

Quantity Per Set:

set of 50

Mounting Mode:

clip-on

Connection Position:

sideways

Width:

6.2 mm

Rohs Exemption Information:

Yes

Resistivity:

10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30

Creep Resistance:

500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30

Product Certifications:

VDE || ATEX || LR || CSA || GL || DNV || EAC || IEC-Ex || cURus

Connections - Terminals:

1 x screw terminal upstream || 1 x screw terminal downstream

Dielectric Constant:

3.7 at 1 MHz

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Wire Stripping Length:

9 mm

Height:

47.5 mm

Terminal Block Type:

protective earth

Dielectric Loss:

0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4

Sustainable Offer Status:

Green Premium product

Material:

polyamide 6/6: insulating case

Color:

green-yellow

Number Of Measurement Input:

2

Device Short Name:

TRV

Product Name:

Linergy TR

Product Compatibility:

Spacial enclosures

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Halogen Content Performance:

Halogen free plastic parts product

Length:

47.7 mm

Range Compatibility:

Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys

Flame Retardance:

V0 0.8 mm UL 94

Ambient Air Temperature For Operation:

-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21

Nominal Cross Section:

4 mm²

Terminal Block Level:

1

Range:

Linergy

Tightening Torque:

0.6-0.8 N.m

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Dielectric Strength:

1000 V IEC 60243-1

Surface Resistance:

1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
