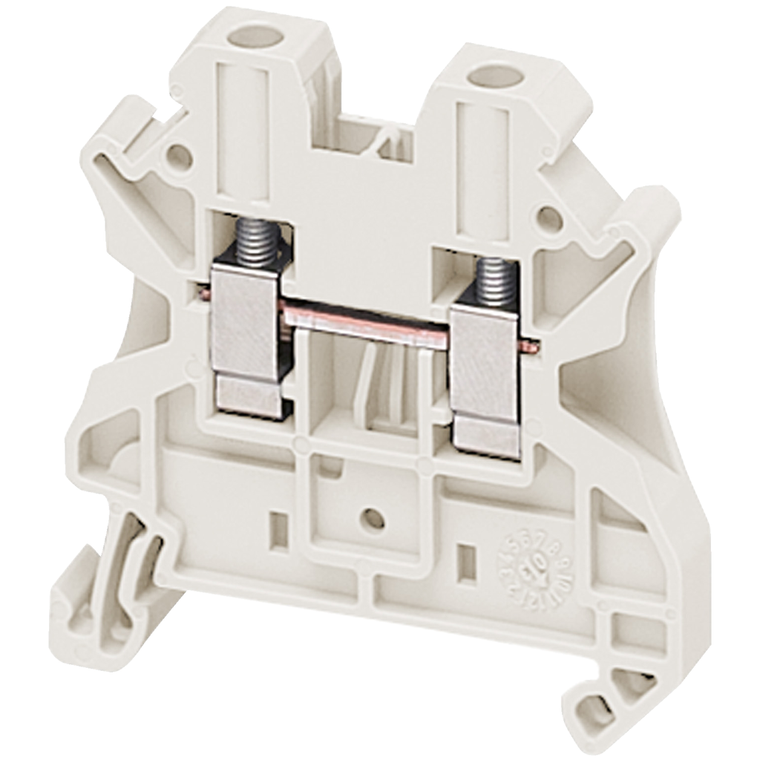

Schneider Electric NSYTRV42WH Screw Terminal, Feed Through, 2Pts,4Mm2

Schneider Electric NSYTRV42WH Screw Terminal, Feed Through, 2Pts,4Mm2

Schneider Electric
SKU:
NSYTRV42WH
|
UPC:
3606480531958
$1.50
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
The Linergy line of terminal blocks offers a wide selection of blocks and accessories. Linergy terminal blocks have push-in type, spring type, and screw type terminal blocks. This white feed through terminal block has 2 terminal points. This terminal block has screw termination. The terminals are rated 30 A at 600 volts. The terminals will accept wires from 26 AWG to 10AWG. With the help of a screw driver the block will mount on 35mm DIN rail. Each block is 1.87 inches tall, 0.24 inches wide and 1.88 inches deep. Each wieghs 0.33 oz. The blocks are sold in boxes of 50. The blocks are UL component recognized, CSA certified and meet IEC requirements.
Additional Information
Product Or Component Type:
terminal block
Halogen Content Performance:
Halogen free plastic parts product
Flame Retardance:
V0 0.8 mm UL 94
Cable Cross Section:
0.14-6 mm², solid with cable end || 0.2-4 mm², flexible with cable end || 0.2-6 mm², solid without cable end || 0.2-6 mm², flexible without cable end
Creep Resistance:
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
Mercury Free:
Yes
Terminal Block Level:
1
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product Certifications:
LR || EAC || GL || cURus || ATEX || DNV || IEC-Ex || CSA || VDE
Ambient Air Temperature For Operation:
-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
Tool Type:
connection screwdriver || disconnection screwdriver
Range:
Linergy
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Height:
47.5 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Accessory / Separate Part Category:
connection accessory
Nominal Cross Section:
4 mm²
Resistivity:
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Net Weight:
9.4 g
Surface Resistance:
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
Sustainable Offer Status:
Green Premium product
Dielectric Strength:
1000 V IEC 60243-1
[Ue] Rated Operational Voltage:
1000 V EN/IEC 60947-7-1 || 600 V CSA || 690 V ATEX Exe II Ex II 2 GD || 600 V cURus
Width:
6.2 mm
Rohs Exemption Information:
Yes
Device Short Name:
TRV
Dielectric Constant:
3.7 at 1 MHz
Range Compatibility:
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
Length:
47.7 mm
Number Of Measurement Input:
2
Terminal Block Type:
passthrough
Material:
polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring
Tightening Torque:
0.6-0.8 N.m
Wire Stripping Length:
9 mm
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive:
Compliant with Exemptions
Mounting Mode:
clip-on
Color:
White
Environmental Disclosure:
ENVPEP2309018EN
Dielectric Loss:
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
Product Name:
Linergy TR
Quantity Per Set:
set of 50
Circularity Profile:
N/A
Number Of Terminals:
2
Line Rated Current:
32-32 A EN/IEC 60947-7-1 || 30-30 A CSA || 30-30 A ATEX Exe II Ex II 2 GD || 30-30 A cURus
Connection Position:
sideways
Connections - Terminals:
1 x screw terminal upstream M3) || 1 x screw terminal downstream M3)
Warranty:
18 months
Product Compatibility:
Spacial enclosures
