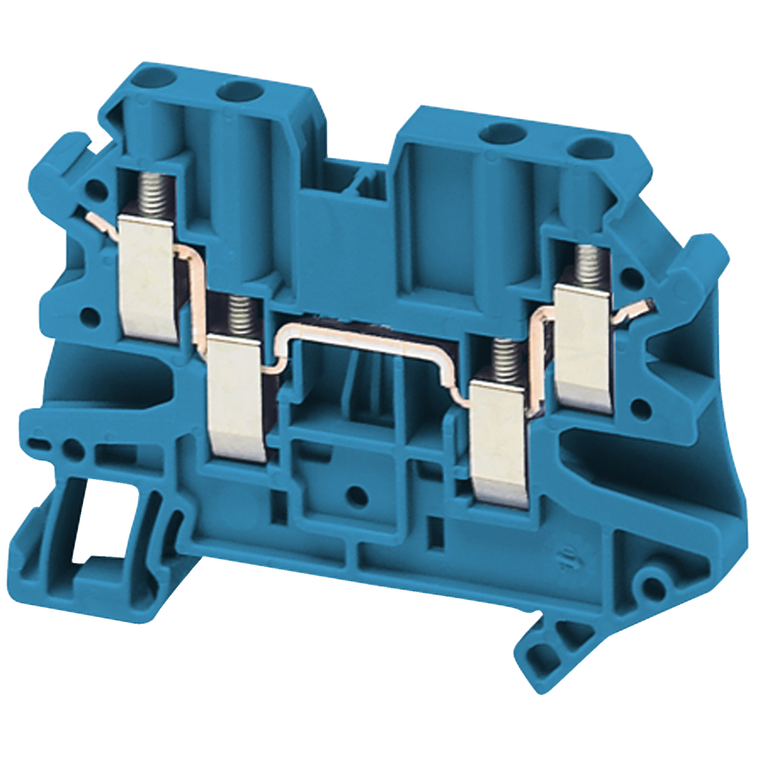

Schneider Electric NSYTRV44BL Screw Terminal, Feed Through, 4 Points, Pack of 50

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTRV44BL Screw Terminal, Feed Through, 4 Points, Pack of 50

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTRV44BL

UPC:

3606480532016

MPN:

Condition:

New

[Ue] Rated Operational Voltage:

500 V EN/IEC 60947-7-1 || 352 V ATEX Exe II Ex II 2 GD || 150 V cURus

Tightening Torque:

0.6-0.8 N.m

Connection Position:

sideways

Range:

Linergy

Net Weight:

17 g

Environmental Disclosure:

ENVPEP2309018EN

Rohs Exemption Information:

Yes

Line Rated Current:

32-32 A EN/IEC 60947-7-1 || 30-30 A cURus || 29-29 A ATEX Exe II Ex II 2 GD

Warranty:

18 months

Dielectric Strength:

1000 V IEC 60243-1

Material:

polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring

Quantity Per Set:

set of 50

Wire Stripping Length:

9 mm

Product Or Component Type:

terminal block

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Resistivity:

10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30

Range Compatibility:

Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys || Thalassa Thalassa TBP || Thalassa Thalassa TBS

Product Certifications:

LR || cURus || GL || CSA || ATEX || DNV || EAC || IEC-Ex

Surface Resistance:

1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30

Flame Retardance:

V0 0.8 mm UL 94

Terminal Block Level:

1

Mounting Mode:

clip-on

Terminal Block Type:

passthrough

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Circularity Profile:

N/A

Length:

65.4 mm

Accessory / Separate Part Category:

connection accessory

Device Short Name:

TRV

Number Of Measurement Input:

2

Tool Type:

connection screwdriver || disconnection screwdriver

Height:

47.5 mm

Width:

6.2 mm

Cable Cross Section:

0.14-6 mm², solid with cable end || 0.2-4 mm², flexible with cable end || 0.14-6 mm², flexible without cable end || 0.14-6 mm², solid without cable end

Dielectric Loss:

0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4

Product Compatibility:

Spacial enclosures

Dielectric Constant:

3.7 at 1 MHz

Sustainable Offer Status:

Green Premium product

Halogen Content Performance:

Halogen free plastic parts product

Product Name:

Linergy TR

Mercury Free:

Yes

Number Of Terminals:

4

Color:

Blue

Nominal Cross Section:

4 mm²

Eu Rohs Directive:

Compliant with Exemptions

Ambient Air Temperature For Operation:

-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Creep Resistance:

500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30

Connections - Terminals:

2 x screw terminal downstream M3) || 2 x screw terminal upstream M3)
