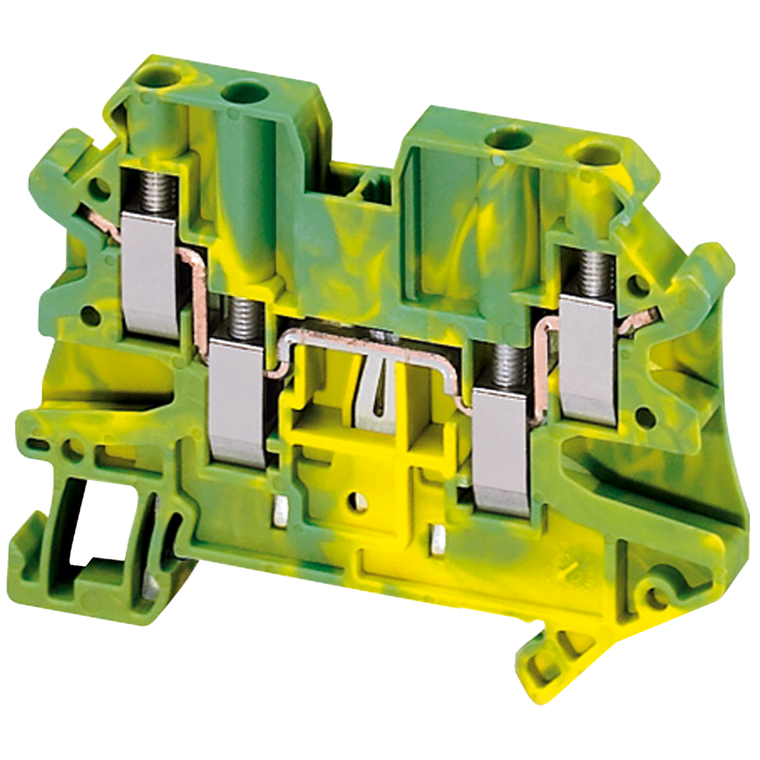

Schneider Electric NSYTRV44PE Screw Terminal, Protective Earth, 4 Poin

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTRV44PE Screw Terminal, Protective Earth, 4 Poin

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTRV44PE

UPC:

3.60648E+12

MPN:

Condition:

New

Resistivity:

10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30

Terminal Block Type:

protective earth

Cable Cross Section:

0.14-6 mm², solid || 0.2-4 mm², flexible with cable end || 0.14-6 mm², flexible without cable end

Tightening Torque:

0.6-0.8 N.m

Dielectric Loss:

0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4

Dielectric Strength:

1000 V IEC 60243-1

Device Short Name:

TRV

Mercury Free:

Yes

Surface Resistance:

1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30

Connections - Terminals:

2 x screw terminal downstream || 2 x screw terminal upstream

Product Compatibility:

Spacial enclosures

Product Or Component Type:

terminal block

Height:

47.5 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Tool Type:

connection screwdriver || disconnection screwdriver

Product Certifications:

DNV || GL || ATEX || cURus || CSA || LR || EAC || IEC-Ex

Range Compatibility:

Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys

Warranty:

18 months

Connection Position:

sideways

Length:

65.4 mm

Environmental Disclosure:

ENVPEP2309022EN

Nominal Cross Section:

4 mm²

Number Of Terminals:

4

Terminal Block Level:

1

Wire Stripping Length:

9 mm

Material:

polyamide 6/6: insulating case

Flame Retardance:

V0 0.8 mm UL 94

Mounting Mode:

clip-on

Range:

Linergy

Rohs Exemption Information:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Color:

green-yellow

Product Name:

Linergy TR

Sustainable Offer Status:

Green Premium product

Creep Resistance:

500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30

Quantity Per Set:

set of 50

Width:

6.2 mm

Ambient Air Temperature For Operation:

-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21

Number Of Measurement Input:

2

Dielectric Constant:

3.7 at 1 MHz

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Net Weight:

21.5 g

Halogen Content Performance:

Halogen free plastic parts product

Circularity Profile:

N/A

Eu Rohs Directive:

Compliant with Exemptions
