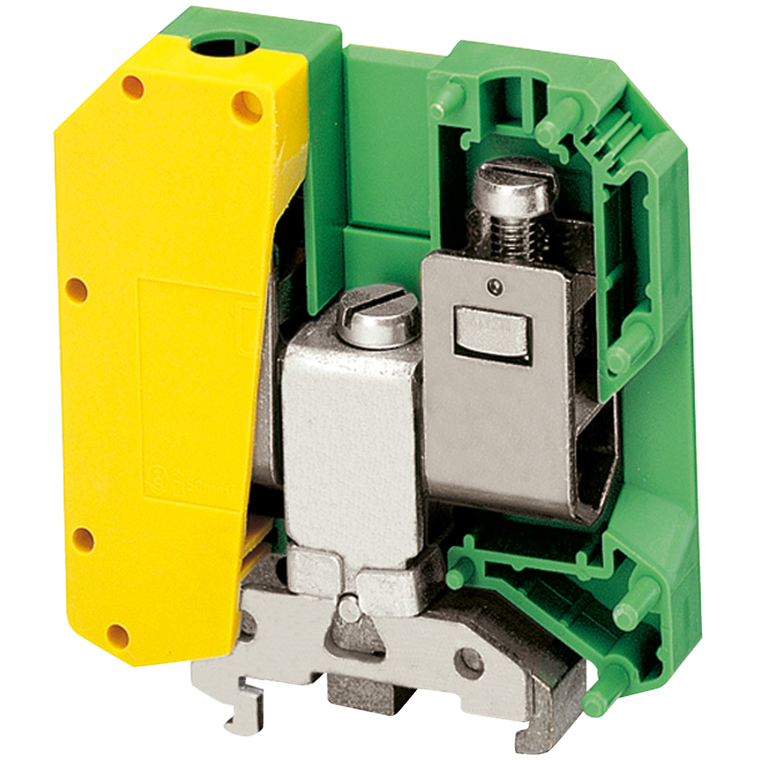

Schneider Electric NSYTRV502PE Screw Terminal, Protective Earth, 2 Poin
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Terminal block, Linergy TR, green-yellow, 50mm2, protective earth, 2 points, Set of 50
- Flame Retardance:
- V0 0.8 mm UL 94
- Environmental Disclosure:
- ENVPEP2309022EN
- Ambient Air Temperature For Operation:
- -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
- Wire Stripping Length:
- 24 mm
- Circularity Profile:
- N/A
- Terminal Block Level:
- 1
- Tool Type:
- connection screwdriver || disconnection screwdriver
- Nominal Cross Section:
- 50 mm²
- Creep Resistance:
- 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
- Product Compatibility:
- Spacial enclosures
- Line Rated Current:
- 150-150 A EN/IEC 60947-7-1
- Surface Resistance:
- 1000 G⦠IEC 60093 || 1000 G⦠VDE 0303-T30
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Device Short Name:
- TRV
- Mounting Mode:
- clip-on
- Sustainable Offer Status:
- Green Premium product
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Range Compatibility:
- Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
- Number Of Terminals:
- 2
- Length:
- 70.5 mm
- Cable Cross Section:
- 25-70 mm², solid || 25-50 mm², flexible with cable end || 25-70 mm², flexible without cable end
- Number Of Measurement Input:
- 0
- Height:
- 83.5 mm
- Width:
- 20 mm
- Connection Position:
- sideways
- Range:
- Linergy
- Mercury Free:
- Yes
- Net Weight:
- 184 g
- Eu Rohs Directive:
- Compliant with Exemptions
- Quantity Per Set:
- set of 50
- Halogen Content Performance:
- Halogen free plastic parts product
- Warranty:
- 18 months
- Material:
- polyamide 6/6: insulating case
- Connections - Terminals:
- 1 x screw terminal upstream || 1 x screw terminal downstream
- Product Certifications:
- LR || IEC-Ex || EAC || ATEX || GL || DNV || cURus || CSA
- Dielectric Loss:
- 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
- Rohs Exemption Information:
- Yes
- Resistivity:
- 10000 Mâ¦.m IEC 60093 || 10000 Mâ¦.m VDE 0303-T30
- Product Name:
- Linergy TR
- Product Or Component Type:
- terminal block
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Dielectric Strength:
- 1000 V IEC 60243-1
- Terminal Block Type:
- protective earth
- Tightening Torque:
- 6-8 N.m
- Color:
- green-yellow
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Dielectric Constant:
- 3.7 at 1 MHz
- Catalog:
- View
- Datasheet:
- View
