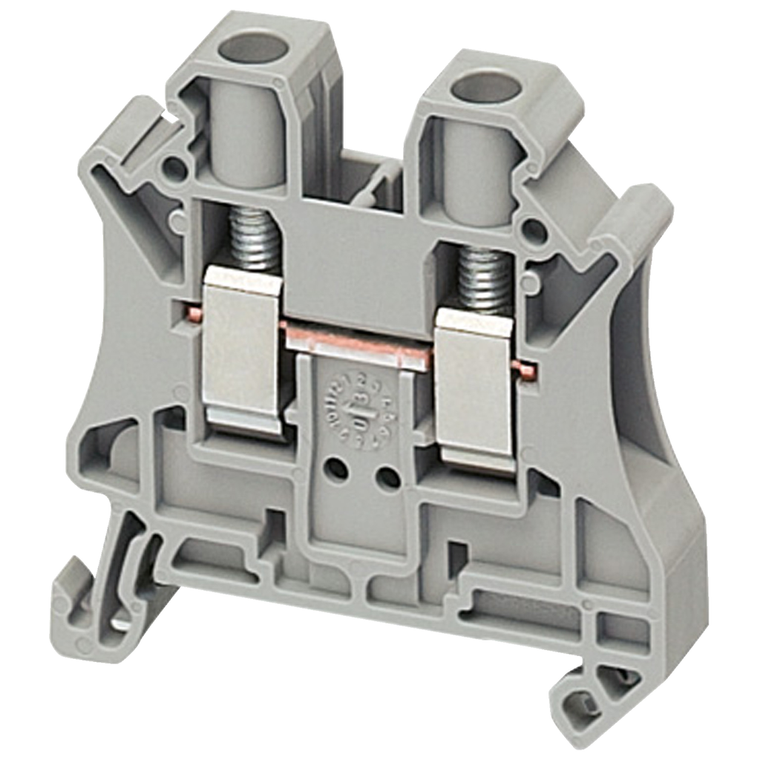

Schneider Electric NSYTRV62 Screw Terminal, Feed Through, 2 Points, Pack of 50
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 6 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1 and 690V conforming to ATEX Exe II Ex II 2 GD. The rated current is 41A conforming to EN/IEC 60947-7-1, 50A conforming to CSA/cURus and 40A conforming to ATEX Exe II Ex II 2 GD. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).
- Product Certifications:
- ATEX || LR || VDE || GL || DNV || CSA || cURus || EAC || IEC-Ex
- Terminal Block Level:
- 1
- Tool Type:
- connection screwdriver || disconnection screwdriver
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Quantity Per Set:
- set of 50
- Mercury Free:
- Yes
- Dielectric Constant:
- 3.7 at 1 MHz
- Length:
- 47.7 mm
- Product Or Component Type:
- terminal block
- Product Name:
- Linergy TR
- Nominal Cross Section:
- 6 mm²
- Mounting Mode:
- clip-on
- Warranty:
- 18 months
- Range Compatibility:
- Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
- Width:
- 8.2 mm
- Circularity Profile:
- N/A
- Material:
- polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring
- Device Short Name:
- TRV
- Tightening Torque:
- 1.5-1.8 N.m
- Product Compatibility:
- Spacial enclosures
- Connection Position:
- sideways
- Flame Retardance:
- V0 0.8 mm UL 94
- Line Rated Current:
- 41-41 A EN/IEC 60947-7-1 || 50-50 A cURus || 50-50 A CSA || 40-40 A ATEX Exe II Ex II 2 GD
- Surface Resistance:
- 1000 G⦠IEC 60093 || 1000 G⦠VDE 0303-T30
- Eu Rohs Directive:
- Compliant with Exemptions
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Resistivity:
- 10000 Mâ¦.m IEC 60093 || 10000 Mâ¦.m VDE 0303-T30
- Terminal Block Type:
- passthrough
- Net Weight:
- 13.95 g
- Dielectric Strength:
- 1000 V IEC 60243-1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- [Ue] Rated Operational Voltage:
- 1000 V EN/IEC 60947-7-1 || 600 V CSA || 690 V ATEX Exe II Ex II 2 GD || 600 V cURus
- Wire Stripping Length:
- 10 mm
- Accessory / Separate Part Category:
- connection accessory
- Height:
- 47.5 mm
- Cable Cross Section:
- 0.2-10 mm², solid with cable end || 0.2-6 mm², flexible with cable end || 0.2-10 mm², solid without cable end || 0.2-10 mm², flexible without cable end
- Environmental Disclosure:
- ENVPEP2309018EN
- Dielectric Loss:
- 0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
- Sustainable Offer Status:
- Green Premium product
- Number Of Measurement Input:
- 2
- Color:
- Gray
- Ambient Air Temperature For Operation:
- -40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
- Rohs Exemption Information:
- Yes
- Number Of Terminals:
- 2
- Halogen Content Performance:
- Halogen free plastic parts product
- Creep Resistance:
- 500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
- Connections - Terminals:
- 1 x screw terminal upstream M4) || 1 x screw terminal downstream M4)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Range:
- Linergy
