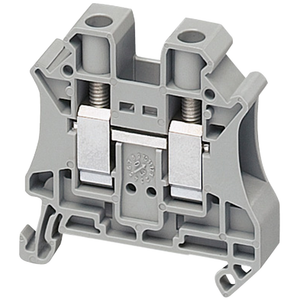

Schneider Electric NSYTRV62TT Screw Terminal, Feed Through, Measuring Pack of 50

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYTRV62TT Screw Terminal, Feed Through, Measuring Pack of 50

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYTRV62TT

UPC:

3606480532405

MPN:

Condition:

New

Circularity Profile:

N/A

Ambient Air Temperature For Operation:

-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21

Terminal Block Level:

1

Dielectric Strength:

1000 V IEC 60243-1

Mounting Mode:

clip-on

Length:

100.8 mm

[Ue] Rated Operational Voltage:

500 V EN/IEC 60947-7-1 || 600 V cURus || 600 V CSA

Rohs Exemption Information:

Yes

Sustainable Offer Status:

Green Premium product

Tightening Torque:

1.5-1.8 N.m

Height:

49.6 mm

Width:

8.2 mm

Number Of Measurement Input:

6

Product Compatibility:

Spacial enclosures

Quantity Per Set:

set of 50

Color:

Gray

Number Of Terminals:

2

Net Weight:

25.4 g

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Creep Resistance:

500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30

Connection Position:

inclined

Material:

polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Product Or Component Type:

terminal block

Range Compatibility:

Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys

Cable Cross Section:

0.2-10 mm², solid || 0.2-10 mm², flexible without cable end || 0.2-6 mm², flexible with cable end

Line Rated Current:

30-30 A EN/IEC 60947-7-1 || 30-30 A cURus || 30-30 A CSA

Resistivity:

10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30

Eu Rohs Directive:

Compliant with Exemptions

Accessory / Separate Part Category:

connection accessory

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Flame Retardance:

V0 0.8 mm UL 94

Device Short Name:

TRV

Nominal Cross Section:

6 mm²

Warranty:

18 months

Mercury Free:

Yes

Dielectric Loss:

0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4

Connections - Terminals:

1 x screw terminal upstream M4) || 1 x screw terminal downstream M4)

Surface Resistance:

1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30

Product Name:

Linergy TR

Tool Type:

connection screwdriver || disconnection screwdriver

Halogen Content Performance:

Halogen free plastic parts product

Range:

Linergy

Wire Stripping Length:

10 mm

Terminal Block Type:

passthrough

Environmental Disclosure:

ENVPEP2309018EN

Dielectric Constant:

3.7 at 1 MHz

Product Certifications:

EAC || CSA || cURus
