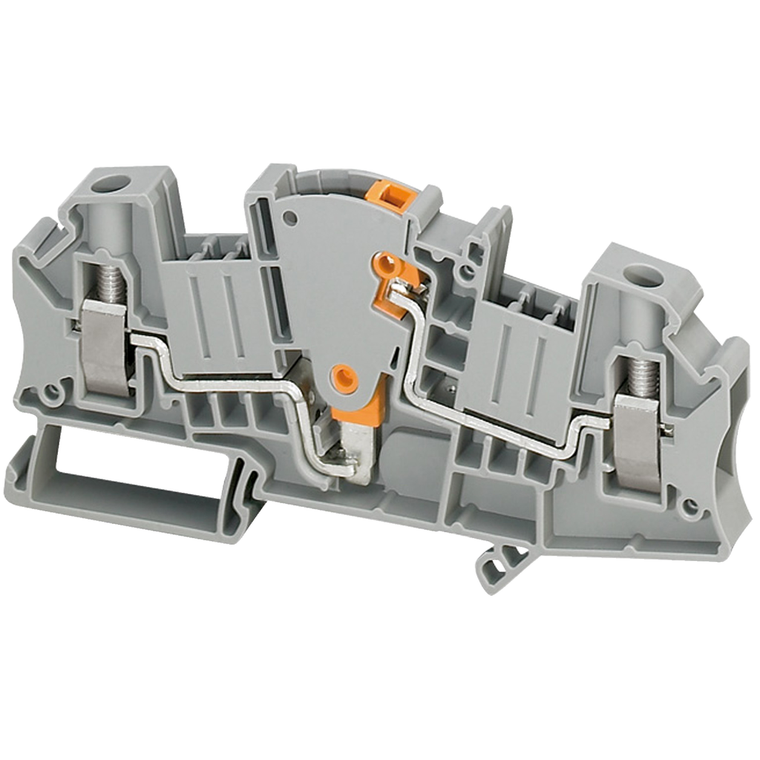

Schneider Electric NSYTRV62TTD Screw Terminal, Disconnect, Measuring Tr Pack of 50

Schneider Electric NSYTRV62TTD Screw Terminal, Disconnect, Measuring Tr Pack of 50

Schneider Electric
SKU:
NSYTRV62TTD
|
UPC:
3606480532399
$650.00
(No reviews yet) Write a Review
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
Screw terminal, Linergy TR, disconnect, measuring transducer, 2 points, 6mm², grey
Additional Information
Sustainable Offer Status:
Green Premium product
Number Of Measurement Input:
6
Rohs Exemption Information:
Yes
Wire Stripping Length:
10 mm
Ambient Air Temperature For Operation:
-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
Color:
Gray
Connections - Terminals:
1 x screw terminal upstream || 1 x screw terminal downstream
Quantity Per Set:
set of 50
Dielectric Loss:
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
Product Or Component Type:
terminal block
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Surface Resistance:
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Number Of Terminals:
2
Accessory / Separate Part Category:
connection accessory
Range Compatibility:
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
Line Rated Current:
30-30 A EN/IEC 60947-7-1 || 30-30 A cURus || 30-30 A CSA
Net Weight:
28.2 g
Product Certifications:
cURus || EAC || CSA
Dielectric Strength:
1000 V IEC 60243-1
Environmental Disclosure:
ENVPEP2309018EN
Mercury Free:
Yes
Circularity Profile:
N/A
Cable Cross Section:
0.2-10 mm², solid || 0.2-10 mm², flexible without cable end || 0.2-6 mm², flexible with cable end
Product Compatibility:
Spacial enclosures
Device Short Name:
TRV
Dielectric Constant:
3.7 at 1 MHz
[Ue] Rated Operational Voltage:
500 V EN/IEC 60947-7-1 || 600 V cURus || 600 V CSA
Tool Type:
connection screwdriver || disconnection screwdriver
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product Name:
Linergy TR
Width:
8.2 mm
Mounting Mode:
clip-on
Length:
100.8 mm
Creep Resistance:
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
Resistivity:
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Warranty:
18 months
Halogen Content Performance:
Halogen free plastic parts product
Terminal Block Type:
blade disconnect
Range:
Linergy
Flame Retardance:
V0 0.8 mm UL 94
Tightening Torque:
1.5-1.8 N.m
Material:
polyamide 6/6: insulating case
Height:
49.6 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Terminal Block Level:
1
Connection Position:
inclined
Nominal Cross Section:
6 mm²
Eu Rohs Directive:
Compliant with Exemptions
