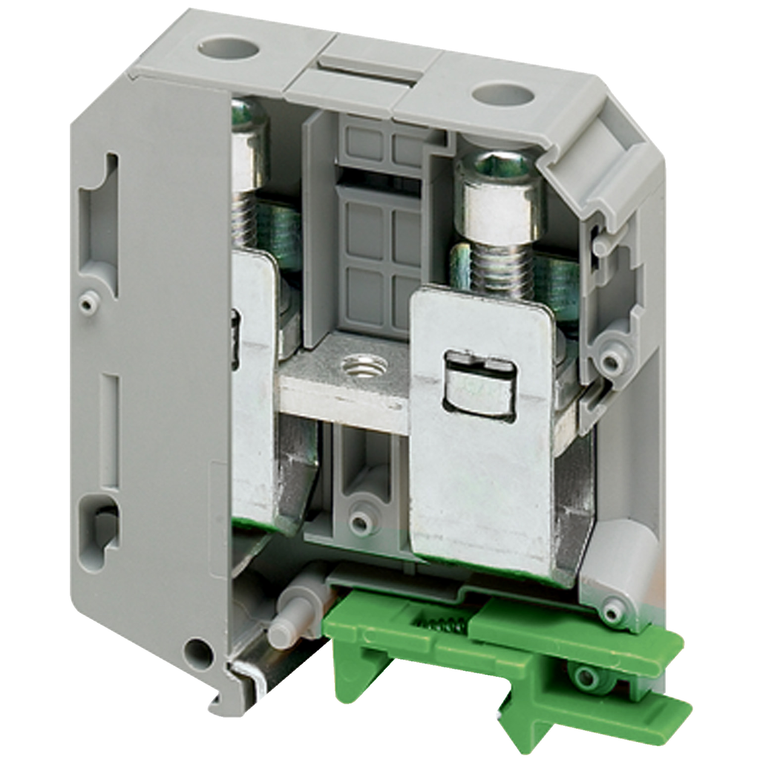

Schneider Electric NSYTRV702 Screw Terminal, Feed Through, 2 Points, Pack of 10

Schneider Electric NSYTRV702 Screw Terminal, Feed Through, 2 Points, Pack of 10

Schneider Electric
SKU:
NSYTRV702
|
UPC:
3606480532238
Availability:
Factory stock
$404.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 70 mm² nominal cross section. The rated operational voltage is 600V conforming to cURus, 1000V conforming to CSA and 1000V conforming to EN/IEC 60947-7-1. The rated current is 192A conforming to EN/IEC 60947-7-1 and 192A conforming to CSA and cURus. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 10 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).

Additional Information
Dielectric Constant:
3.7 at 1 MHz
Product Name:
Linergy TR
Mounting Mode:
clip-on
Tightening Torque:
8-10 N.m
Toxic Heavy Metal Free:
Yes
Material:
polyamide 6/6: insulating case || copper alloy: connector and screw || copper alloy: commoning link || chromium-nickel steel: spring
Cable Cross Section:
25-70 mm², solid with cable end || 25-70 mm², solid without cable end || 25-70 mm², flexible with cable end || 16-95 mm², flexible without cable end
Connection Position:
sideways
Number Of Terminals:
2
Tool Type:
connection screwdriver || disconnection screwdriver
Number Of Measurement Input:
1
Range:
Linergy
Device Short Name:
TRV
Ambient Air Temperature For Operation:
-40-130 °C IEC 60216-1 || -40-130 °C VDE 0304-T21
Line Rated Current:
192-192 A EN/IEC 60947-7-1 || 192-192 A CSA || 192-192 A cURus
Net Weight:
195 g
Height:
87.5 mm
Terminal Block Type:
passthrough
Connections - Terminals:
1 x screw terminal upstream M8) || 1 x screw terminal downstream M8)
Quantity Per Set:
set of 10
Halogen Content Performance:
Halogen free plastic parts product
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Terminal Block Level:
1
Accessory / Separate Part Category:
connection accessory
[Ue] Rated Operational Voltage:
1000 V EN/IEC 60947-7-1 || 1000 V CSA || 600 V cURus
Warranty:
18 months
Product Or Component Type:
terminal block
Environmental Disclosure:
ENVPEP2309018EN
Creep Resistance:
500 CTI (> 400 kB) IEC 60093 || 500 CTI (> 400 kB) VDE 0303-T30
Range Compatibility:
Prisma G || Prisma P || Prisma PH || Prisma Pack || Spacial || Kaedra || Pragma || TeSys
Eu Rohs Directive:
Compliant
Dielectric Strength:
1000 V IEC 60243-1
Rohs Exemption Information:
Yes
Width:
20.3 mm
Circularity Profile:
N/A
Dielectric Loss:
0.01 at 1 MHz IEC 60250 || 0.01 at 1 MHz VDE 0303-T4
Surface Resistance:
1000 GΩ IEC 60093 || 1000 GΩ VDE 0303-T30
Product Certifications:
DNV || CSA || EAC || cURus || LR || IEC-Ex || VDE || GL || ATEX
Mercury Free:
Yes
Nominal Cross Section:
70 mm²
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Sustainable Offer Status:
Green Premium product
Flame Retardance:
V0 0.8 mm UL 94
Reach Free Of Svhc:
Yes
Resistivity:
10000 MΩ.m IEC 60093 || 10000 MΩ.m VDE 0303-T30
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Wire Stripping Length:
24 mm
Product Compatibility:
Spacial enclosures
Length:
70.5 mm
Color:
Gray
