Schneider Electric

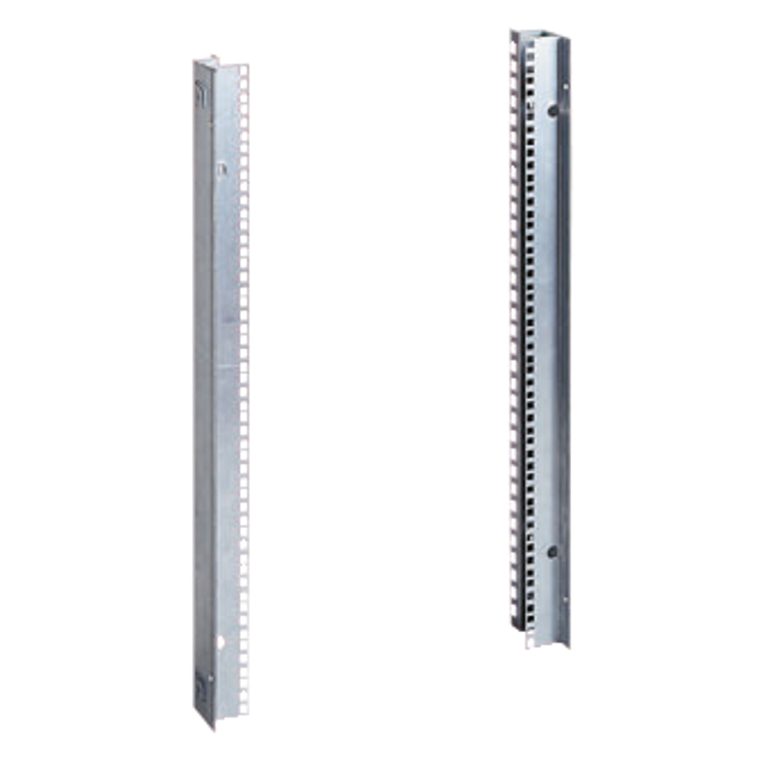

Schneider Electric NSYVDM12UF 19" Fixed Chassis 12U Spacial

SKU:

NSYVDM12UF

UPC:

3.60648E+12

MPN:

Condition:

New

Height:

nominal 600 mm

Range:

Spacial

Device Application:

electronic application || multi-purpose

Rohs Exemption Information:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Environmental Disclosure:

ENVPEP100104EN

Circularity Profile:

N/A

Color:

Gray RAL 7035)

Width:

nominal 600 mm

Warranty:

18 months

Mercury Free:

Yes

Device Composition:

fixing elements || 2 19" uprights

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Net Weight:

4.36 kg

Product Or Component Type:

19" rack

Enclosure Nominal Dimensions:

H: 600 mm W: 600 mm D: 200 mm || - H: 600 mm W: 600 mm D: 250 mm || - H: 600 mm W: 600 mm D: 300 mm || - H: 600 mm W: 600 mm D: 400 mm

Thickness:

2 mm

Fixing Mode:

by fixing element

Mounting Location:

step slide || front of enclosure

Range Compatibility:

Spacial Spacial S3D || Spacial Spacial S3X || Spacial Spacial VDM || Spacial Spacial CRN

Adjustment:

adjustable in depth, pitch 12.5 mm, on the step slide

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Material:

galvanised steel

Rack Type:

fixed

Depth:

700 mm

Number Of Units 19":

12

Permanent Permissible Load:

3 kg per unit

Accessory / Separate Part Category:

mounting accessory

Sustainable Offer Status:

Green Premium product

Datasheet:

View
