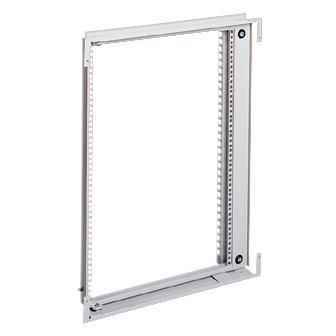

Schneider Electric NSYVDM16UP 19" Swing Chassis 16U Spacial

SKU:

NSYVDM16UP

UPC:

3606480174728

MPN:

Condition:

New

Permanent Permissible Load:

3 kg per unit

Material:

chassis steel

Product Or Component Type:

19" rack

Fixing Mode:

by fixing element

Height:

nominal 800 mm

Environmental Disclosure:

ENVPEP100104EN

Enclosure Nominal Dimensions:

H: 800 mm W: 600 mm D: 200 mm || - H: 800 mm W: 600 mm D: 250 mm || - H: 800 mm W: 600 mm D: 300 mm || - H: 800 mm W: 600 mm D: 400 mm

Accessory / Separate Part Category:

mounting accessory

Mounting Location:

front of enclosure

Device Composition:

fixing elements || 1 19" swing chassis || 2 lock

Color:

Gray RAL 7035)

Rohs Exemption Information:

Yes

Lock Type:

lock with 3 mm double bar insert

Mercury Free:

Yes

Surface Finish:

epoxy-polyester powder

Net Weight:

6.44 kg

Range:

Spacial

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Rack Type:

swing

Width:

nominal 600 mm

Number Of Units 19":

16

Circularity Profile:

N/A

Device Application:

multi-purpose || electronic application

Depth:

130 mm

Warranty:

18 months

Sustainable Offer Status:

Green Premium product

Range Compatibility:

Spacial Spacial S3D || Spacial Spacial S3X || Spacial Spacial VDM || Spacial Spacial CRN || Spacial Spacial CRNG

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Opening Of The 19" Racks:

reversible 120 °

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)
