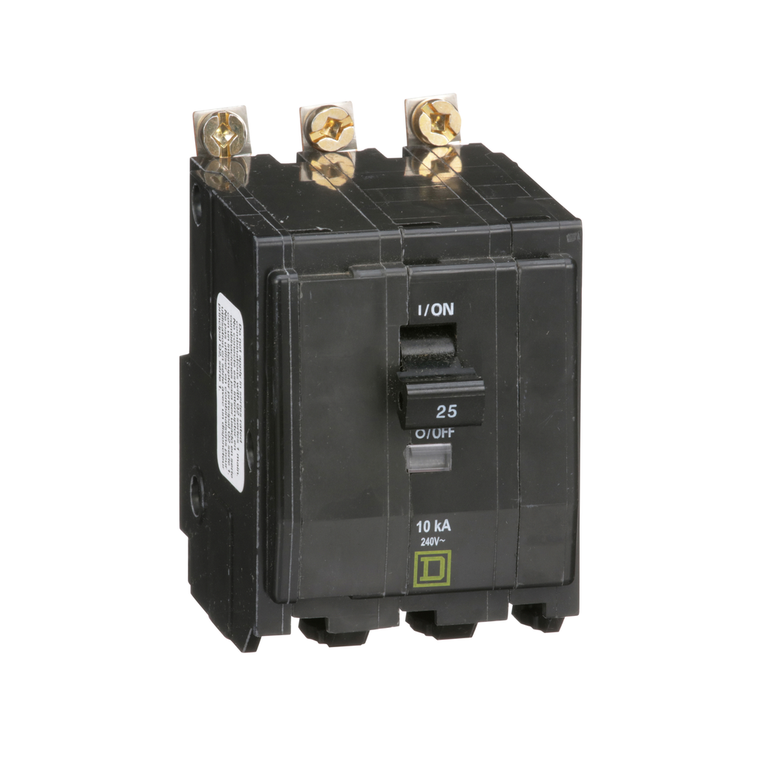

Schneider Electric QOB325 Miniature Circuit Breaker 240V 25A
QO and QOB one, two, and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 25A at 120/240VAC. This unit provides 10kA breaking capacity and is bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
- Product Certifications:
- UL Listed || CSA
- Range Of Product:
- QO
- Rohs Exemption Information:
- Yes
- Tightening Torque:
- 4-4 N.m
- Awg Gauge:
- AWG 14...AWG 8 copper or aluminium
- Mounting Mode:
- bolt-on
- Eu Rohs Directive:
- Compliant with Exemptions
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Halogen Content Performance:
- Halogen free product
- Product Or Component Type:
- miniature circuit-breaker
- Mercury Free:
- Yes
- Warranty:
- 18 months
- Line Rated Current:
- 25 A
- [Ue] Rated Operational Voltage:
- 120/240 V AC || 240 V AC || 120 V AC
- Net Weight:
- 0.372 kg
- Circuit Breaker Type:
- standard
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ambient Air Temperature For Operation:
- 40 °C
- Toxic Heavy Metal Free:
- Yes
- Breaking Capacity:
- 10 kA 120/240 V AC 50/60 Hz || 10 kA 240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
- Depth:
- 74 mm
- Height:
- 76 mm
- Sustainable Offer Status:
- Green Premium product
- Number Of Spaces Required:
- 3
- Electrical Connection:
- pressure plate
- Circuit Breaker Application:
- HACR rated
- Width:
- 57 mm
- Poles Description:
- 3P
- Circularity Profile:
- N/A
