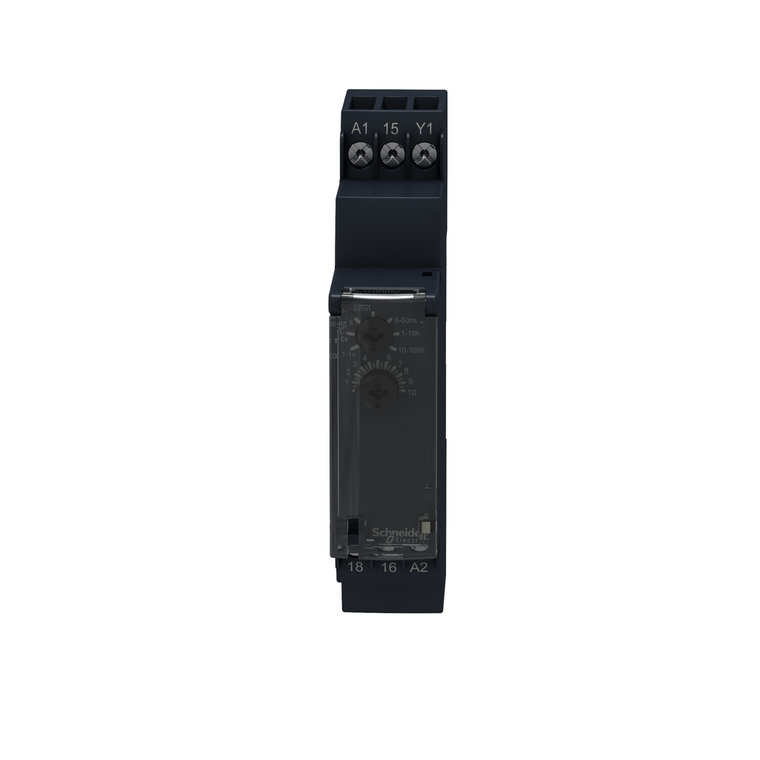

Schneider Electric RE17LHBM Timer Func H Solid State Outpt 24 240Vac
This Harmony RE17L timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 0.7A, is 17.5mm wide and can be supplied with 24V to 240V AC. It also has a solid state output. It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0 0
- Discrete Output Type:
- solid state
- [Us] Rated Supply Voltage:
- 24...240 V AC 50/60 Hz
- Breaking Capacity:
- 0.5 A AC UL || 0.7 A AC 20 °C
- [Uimp] Rated Impulse Withstand Voltage:
- 5 kV 1.2/50 µs
- Electrical Durability:
- 100000000 cycles
- Shock Resistance:
- 15 gn 11 ms IEC 60068-2-27
- Marking:
- CE
- Maximum Voltage Drop:
- <4 V 3-wire || <8 V 2-wire
- Repeat Accuracy:
- +/- 0.5 % IEC 61812-1
- Relative Humidity:
- 93-93 % without condensation IEC 60068-2-30
- Mounting Position:
- any position in relation to normal vertical mounting plane
- Insulation Resistance:
- 100 MOhm 500 V DC IEC 60664-1
- Ambient Air Temperature For Operation:
- -20-60 °C
- Input Voltage:
- 9 V
- Circularity Profile:
- ENVEOLI121113EN
- Immunity To Microbreaks:
- 20 ms
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Or Component Type:
- single function relay
- Connections - Terminals:
- screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end |
- Supply Frequency:
- 50...60 Hz +/- 5 %
- Ambient Air Temperature For Storage:
- -30-60 °C
- Time Delay Range:
- 1...10 s || 1...10 h || 0.1...1 s || 6...60 s || 6...60 min || 1...10 min || 10...100 h
- Range Of Product:
- Harmony Timer Relays
- Power Consumption In Va:
- 0-3 VA 240 V AC
- Component Name:
- RE17L
- Control Type:
- selector switch front panel
- Voltage Drift:
- +/- 0.2 %/V
- Derating Factor:
- 5 mA/°C
- Time Delay Type:
- H
- Tightening Torque:
- 0.6-1 N.m IEC 60947-1
- Functionality:
- on-delay timing
- Housing Material:
- self-extinguishing
- Minimum Switching Current:
- 10 mA
- On-Load Factor:
- 1
- Standards:
- 2006/95/EC || IEC 61000-6-1 || IEC 61000-6-3 || IEC 61000-6-2 || IEC 61812-1 || IEC 61000-6-4 || 2004/108/EC
- Maximum Switching Voltage:
- 250 V AC
- Maximum Delay Response:
- 100 ms
- Impulse Duration:
- 0.05 s typical
- Environmental Disclosure:
- ENVPEP121117EN
- Safety Reliability Data:
- MTTFd = 353.8 years || B10d = 320000
- Temperature Drift:
- +/- 0.05 %/°C
- Time Delay Type:
- interval
- Vibration Resistance:
- 20 m/s² 10-150 Hz)IEC 60068-2-6
- Net Weight:
- 0.068 kg
- Rohs Exemption Information:
- Yes
- Product Certifications:
- cULus || CSA || GL
- Mercury Free:
- Yes
- Setting Accuracy Of Time Delay:
- +/- 10 % of full scale 25 °C IEC 61812-1
- Maximum Power Consumption In W:
- 1.5 W 240 V DC
- Width:
- 17.5 mm
- Sustainable Offer Status:
- Green Premium product
- Operating Rate In Hz:
- 10 Hz
- Mounting Support:
- 35 mm DIN rail conforming to IEC 60715
- Maximum Leakage Current:
- 5 mA
- China Rohs Regulation:
- X
- Nominal Output Current:
- 0.7 A
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ip Degree Of Protection:
- IP20 IEC 60529 terminal block) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)
- Electromagnetic Compatibility:
- electrostatic discharge immunity test 6 kV in contact) level 3 IEC 61000-4-2 || electrostatic discharge immunity test 8 kV in air) level 3 IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80 MHz to 1 GHz) level 3 IEC 61000-4-3 || elec
- Creepage Distance:
- 4 kV/3 IEC 60664-1
- Reset Time:
- 350 ms on de-energisation typical
- Compatibility Code:
- RE17
- Dielectric Strength:
- 2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1
- Maximum Output Current:
- 20 A
