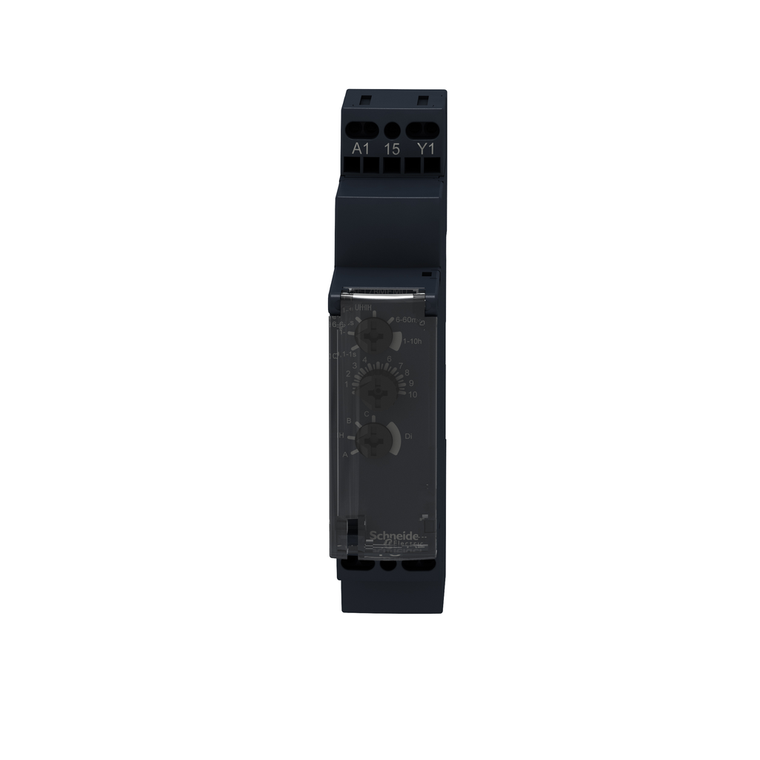

Schneider Electric RE17RMEMU Multifunc Timer 1C O 24Vac Dc 240Vac

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric RE17RMEMU Multifunc Timer 1C O 24Vac Dc 240Vac

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

RE17RMEMU

UPC:

3606480552731

MPN:

Condition:

New

Width:

17.5 mm

Repeat Accuracy:

+/- 0.5 % IEC 61812-1

Vibration Resistance:

20 m/s² 10-150 Hz)IEC 60068-2-6

Mechanical Durability:

10000000 cycles

Temperature Drift:

+/- 0.05 %/°C

Depth:

72 mm

[Uimp] Rated Impulse Withstand Voltage:

5 kV 1.2/50 µs

Rohs Exemption Information:

Yes

Range Of Product:

Harmony Timer Relays

Relative Humidity:

93-93 % without condensation IEC 60068-2-30

Connections - Terminals:

screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end |

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Electromagnetic Compatibility:

electrostatic discharge immunity test 6 kV in contact) level 3 IEC 61000-4-2 || electrostatic discharge immunity test 8 kV in air) level 3 IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80 MHz to 1 GHz) level 3 IEC 61000-4-3 || elec

China Rohs Regulation:

X

Impulse Duration:

100 ms with load in parallel typical || 30 ms typical

Environmental Disclosure:

ENVPEP121117EN

Immunity To Microbreaks:

20 ms

Mounting Support:

35 mm DIN rail conforming to IEC 60715

Power Consumption In Va:

0-32 VA 240 V AC

Product Certifications:

CSA || cULus

Compatibility Code:

RE17

Ambient Air Temperature For Storage:

-30-60 °C

Sustainable Offer Status:

Green Premium product

Minimum Switching Current:

10 mA 5 V DC

Dielectric Strength:

2.5 kV 1 mA/1 minute 50 Hz IEC 61812-1

Nominal Output Current:

0.333333333333333

Discrete Output Type:

relay

Operating Rate In Hz:

10 Hz

Device Short Name:

RE17R

Maximum Switching Voltage:

250 V AC

Creepage Distance:

4 kV/3 IEC 60664-1

Height:

90 mm

Standards:

2004/108/EC || IEC 61000-6-2 || IEC 61000-6-3 || IEC 61000-6-1 || 2006/95/EC || IEC 61812-1 || IEC 61000-6-4

Circularity Profile:

ENVEOLI121113EN

Marking:

CE

On-Load Factor:

1

Maximum Power Consumption In W:

0.6 W 24 V DC

Voltage Drift:

+/- 0.2 %/V

Net Weight:

0.07 kg

Input Voltage:

10 V

Setting Accuracy Of Time Delay:

+/- 10 % of full scale 25 °C IEC 61812-1

Insulation Resistance:

100 MOhm 500 V DC IEC 60664-1

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Maximum Delay Response:

100 ms

Housing Material:

self-extinguishing

Contacts Type And Composition:

1 C/O

Voltage Range:

0.85...1.1 Us

Ip Degree Of Protection:

IP20 IEC 60529 terminal block) || IP40 IEC 60529 housing) || IP50 IEC 60529 front panel)

Tightening Torque:

0.6-1 N.m IEC 60947-1

Supply Frequency:

50...60 Hz +/- 5 %

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

[Us] Rated Supply Voltage:

24...240 V AC 50/60 Hz || 24 V DC

Functionality:

multifunction

Safety Reliability Data:

MTTFd = 296.8 years || B10d = 270000

Product Or Component Type:

multifunction relay

Breaking Capacity:

2000 VA

Maximum Switching Current:

8 A AC/DC

Time Delay Type:

power on-delay || interval || off-delay || symmetrical flashing

Time Delay Range:

6...60 min || 1...10 min || 1...10 s || 1...10 h || 6...60 s || 0.1...1 s

Contacts Material:

cadmium free

Ambient Air Temperature For Operation:

-20-60 °C

Time Delay Type:

A, At, B, C, D, Di, H, Ht

Electrical Durability:

100000 cycles resistive 8 A 250 V AC

Reset Time:

120 ms on de-energisation typical

Control Type:

selector switch front panel

Mounting Position:

any position in relation to normal vertical mounting plane

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free:

Yes

Local Signalling:

LED indicator on steady: relay energised, no timing in progress || LED indicator 80 % ON and 20 % OFF flashing: timing in progress || LED indicator 5 % ON and 95 % OFF pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L)
