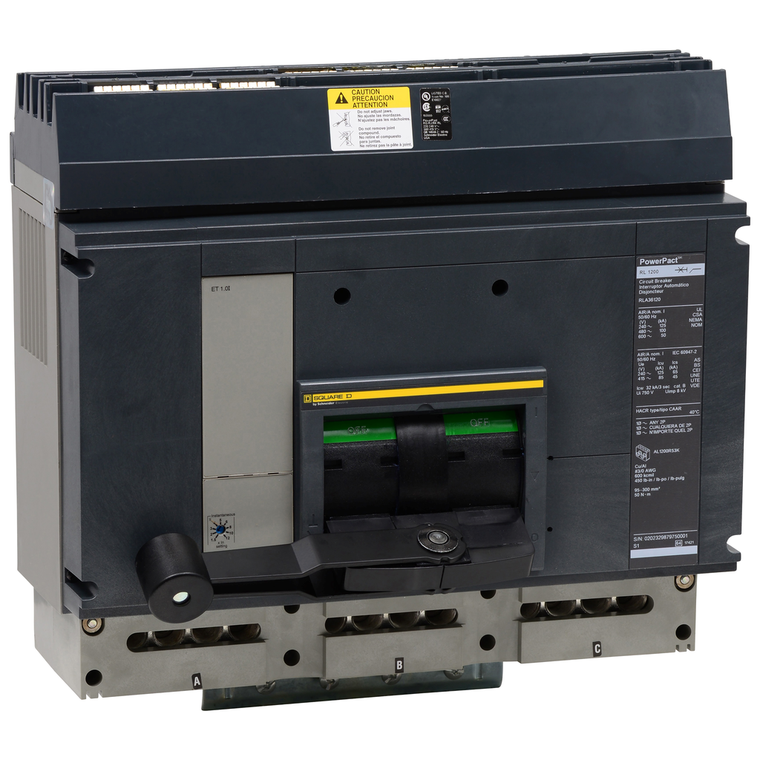

Schneider Electric RGA36100CU31A Molded Case Circuit Breaker 600V 1000A

Schneider Electric RGA36100CU31A Molded Case Circuit Breaker 600V 1000A

Schneider Electric
SKU:
RGA36100CU31A
|
UPC:
7.85901E+11
$33,945.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
PowerPacT R-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT R-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard Trip with a 3.0 trip unit and an LI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT R circuit breakers are available in 2, 3, and 4-pole unit mount and I-Line construction (I-Line construction is available for 1000A and 1200A rated circuit breakers only). This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT P, 1000A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. The circuit breaker has a continuous current rating of 100% with an ABC phase connection. PowerPacT R circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Additional Information
Quantity Per Set:
1
Eu Rohs Directive:
Compliant with Exemptions
Control Type:
operating handle
Mounting Support:
bracket
Number Of Slots:
2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 voltage release MN or MX plug-in)
Trip Unit Name:
MicroLogic 3.0
Breaking Capacity Code:
G
Rohs Exemption Information:
Yes
Standards:
UL || CSA || NEMA || NMX J-266 || IEC 60947-2
Ambient Air Temperature For Operation:
-25-70 °C
[Ue] Rated Operational Voltage:
600 V AC 50/60 Hz UL 489
[Ui] Rated Insulation Voltage:
750 V IEC 60947-2
Circularity Profile:
ENVEOLI2206034EN
Electrical Connection:
I-Line connection, line || lugs, load
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
[Uimp] Rated Impulse Withstand Voltage:
8 kV IEC 60947-2
Terminal Identifier:
AL1200R53K
Breaking Capacity:
AIR 65 kA 240 V AC 50/60 Hz UL 489 || AIR 35 kA 480 V AC 50/60 Hz UL 489 || AIR 18 kA 600 V AC 50/60 Hz UL 489 || Icu 50 kA 240 V AC 50/60 Hz IEC 60947-2 || Icu 35 kA 380/415 V AC 50/60 Hz IEC 60947-2
Pollution Degree:
3 IEC 60947-1
Quality Labels:
CE
Mercury Free:
Yes
Line Rated Current:
1000-1000 A
Range:
PowerPact
Utilisation Category:
category A
Depth:
13.78 in
California Proposition 65:
WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information
Width:
14.96 in
Suitability For Isolation:
yes IEC 60947-2
Environmental Disclosure:
ENVPEP2206034EN
Pvc Free:
Yes
Net Weight:
52 lb(US)
Trip Unit Technology:
electronic, standard, MicroLogic 3.0, LI
Ambient Air Temperature For Storage:
-50-85 °C
Halogen Content Performance:
Halogen free plastic parts product
Product Certifications:
UL || CSA || NOM
Wire Stripping Length:
30 mm
Ip Degree Of Protection:
IP40
Tightening Torque:
28-28 N.m 95-240 mm² (4 x AWG 3/0…600 kcmil)
Circuit Breaker Application:
HACR rated
Network Frequency:
50/60 Hz
Local Signalling:
alarm 1 LED yellow)long-time pick up)
Height:
13.38 in
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Poles Description:
3P
Product Name:
PowerPact R
Mounting Mode:
I-Line bracket)
Device Application:
distribution
Warranty:
18 months
[Ics] Rated Service Breaking Capacity:
25 kA 240 V AC 50/60 Hz IEC 60947-2 || 20 kA 380/415 V AC 50/60 Hz IEC 60947-2
Sustainable Offer Status:
Green Premium product
Operating Altitude:
< 6561.68 ft (2000 m) without derating || 13123.36 ft (4000 m) with derating
Awg Gauge:
4 x AWG 3/0…600 kcmil aluminium/copper || 4 x AWG 3/0...500 kcmil copper
Continuous Current Rating:
1
Product Or Component Type:
circuit breaker
