Schneider Electric RM35JA32MRSP01 Current Control Relay Pack of 32

(No reviews yet) Write a Review

Write a Review

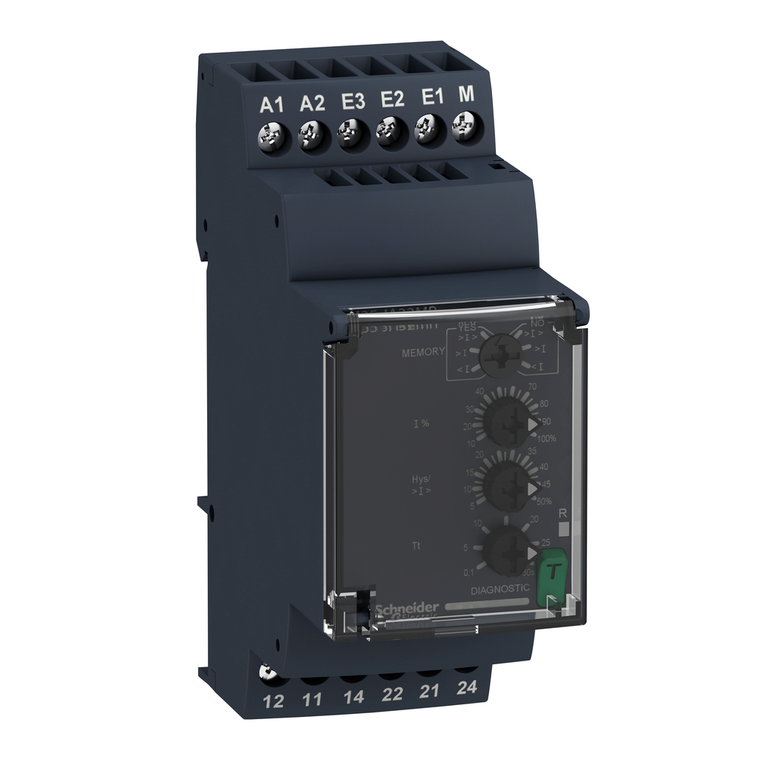

Schneider Electric RM35JA32MRSP01 Current Control Relay Pack of 32

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

RM35JA32MRSP01

UPC:

3606489479435

MPN:

Condition:

New

Safety Reliability Data:

MTTFd = 296.8 years || B10d = 270000

Range Of Product:

Harmony Relay

Dielectric Test Voltage:

2.5 kV AC 50 Hz, 1 min IEC 60255-27

Relay Type:

current control relay

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Pollution Degree:

3 IEC 60664-1 || 3 UL 508

Shock Resistance:

15 gn 11 ms) not in operation IEC 60068-2-27 || 5 gn 11 ms) in operation IEC 60068-2-27

Reset Time:

1500 ms at maximum voltage

Electrical Durability:

100000 cycles

Environmental Disclosure:

ENVPEP1504008EN

Supply Voltage Limits:

20.4-264 V AC/DC

Housing Material:

self-extinguishing plastic

Mechanical Durability:

10000000 cycles

Local Signalling:

for relay ON LED (yellow) || for power ON LED (green)

Setting Accuracy Of Time Delay:

0.916666666666667

Sustainable Offer Status:

Green Premium product

Maximum Measuring Cycle:

100 ms measurement cycle as true rms value

Measurement Range:

0.15...1.5 A E1-M terminals || 0.5...5 A E2-M terminals || 1.5...15 A E3-M terminals || 150 mA...15 A current AC/DC 50/60 Hz

Ambient Air Temperature For Operation:

-20-50 °C 60 Hz || -20-60 °C 50 Hz

Contacts Material:

cadmium free

Utilisation Category:

AC-15 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || AC-1 IEC 60947-4-1 || DC-1 IEC 60947-4-1

Switching Threshold Drift:

<= 0.05 % per degree centigrade depending permissible ambient air temperature || <= 1 % within the supply voltage range

Mercury Free:

Yes

China Rohs Regulation:

X

Product Certifications:

CE || UL || CSA

Ambient Air Temperature For Storage:

-40-70 °C

Net Weight:

0.12 kg

Internal Input Resistance:

0.015 Ohm || 0.005 Ohm || 0.05 Ohm

Resistance Across Terminals:

0.005 Ohm E3-M terminals || 0.015 Ohm E2-M terminals || 0.05 Ohm E1-M terminals

Electromagnetic Compatibility:

immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1 || immunity for industrial environments conforming to IEC 61000-6-2 || emission standard for industrial environments conforming to IEC 61000-6-4 || ele

Width:

35 mm

Standards:

IEC 60255-1

Time Delay Type:

adjustable 0.1...30 s, +/- 10 % of the full scale value on crossing the threshold Tt

Run-Up Delay At Power-Up:

0.3 s

Setting Accuracy Of The Switching Threshold:

+/- 10 % of the full scale

Connections - Terminals:

screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end || screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end |

Nominal Output Current:

0.333333333333333

Overvoltage Category:

III IEC 60664-1 || III UL 508

Insulation Resistance:

> 100 MOhm 500 V DC IEC 60255-27

Time Delay Drift:

<= 0.05 % per degree centigrade depending permissible ambient air temperature || <= 1 % within the supply voltage range

Maximum Switching Voltage:

250 V AC

Maximum Power Consumption In W:

1.5 W DC

Immunity To Microbreaks:

50 ms

Vibration Resistance:

0.075 mm 10-58.1 Hz) not in operation IEC 60068-2-6 || 1 gn 10-58.1 Hz) not in operation IEC 60068-2-6 || 0.035 mm 58.1-150 Hz) in operation IEC 60068-2-6 || 0.5 gn 58.1-150 Hz) in operation IEC 60068-2-6

Environmental Characteristic:

3K3 C

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Maximum Power Consumption In Va:

3.5 VA

Maximum Switching Current:

8 A AC

Ip Degree Of Protection:

IP20 IEC 60529 terminals) || IP50 IEC 60529 front panel) || IP30 IEC 60529 housing)

Switching Capacity In Va:

2000 VA

Relay Monitored Parameters:

overcurrent or undercurrent in window mode || overcurrent or undercurrent detection

Repeat Accuracy:

+/- 0.5 % input and measurement circuit || +/- 2 % time delay

Response Time:

<= 500 ms (on crossing the threshold)

Tightening Torque:

0.6-1 N.m IEC 60947-1

Threshold Setting:

10...100 %

Mounting Support:

35 mm DIN rail conforming to IEC 60715

Circularity Profile:

ENVEOLI1504008EN

Control Circuit Voltage Limits:

15 % + 10 % Un

Product Or Component Type:

modular measurement and control relays

Measurement Error:

< 1 % over the whole range with voltage variation || 0.05 %/°C with temperature variation

Relative Humidity:

93-97 % 25-55 °C IEC 60068-2-30

Hysteresis:

5-50 % adjustable threshold setting || 3-3 % fixed full scale for window mode

Output Contacts:

2 C/O

Rohs Exemption Information:

Yes

Relay Name:

RM35JA

Insulation:

between supply and measurement

Minimum Switching Current:

10 mA 5 V DC
