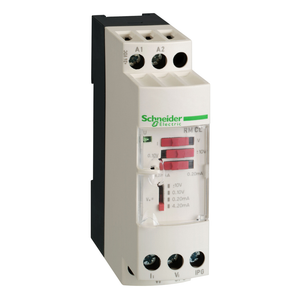

Schneider Electric RMCN22BD Harmony Analogue Converter
Schneider Electric
$95.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric RMCN22BD Harmony Analogue Converter
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This voltage/current converter is part of the range of Harmony Analog interfaces. This cost effective converter converts a 0 to 10 V signal to a 4 to 20mA signal or vice versa. Its supply voltage is 24V DC, non isolated. It also allows the connection distance between a sensor and the measurement acquisition device to be increased. Conforming to IEC standards, UL and CSA certified, this converter is suitable for universal use. 0 0 0 0 0 0 0 0 0 0 0
- Measurement Error:
- +/- 10 % of full scale 20 °C electromagnetic interference of 10 V/m) || +/- 1 % of full scale 20 °C
- Fixing Mode:
- by screws mounting plate) || clip-on 35 mm symmetrical DIN rail)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Product Certifications:
- GL || CSA || UL
- Analogue Input Type:
- current 4...20 mA || voltage 0...10 V DC
- Resistance To Fast Transients:
- 1 kV IEC 61000-4-4 on input-output) || 2 kV IEC 61000-4-4 on power supply)
- Sustainable Offer Status:
- Green Premium product
- China Rohs Regulation:
- X
- Vibration Resistance:
- 5 gn 10-100 Hz)IEC 60068-2-6
- Rohs Exemption Information:
- Yes
- Safety Reliability Data:
- MTTFd = 73.2 years || B10d = 67582
- Repeat Accuracy:
- +/- 0.2 % full scale 20 °C || +/- 0.6 % full scale 60 °C
- Ambient Air Temperature For Operation:
- 0-50 °C mounting side by side || 0-60 °C 2 cm spacing
- Protection Type:
- short-circuit protection on output || overvoltage protection on output (+/- 30 V) || reverse polarity protection on output
- Analogue Output Type:
- current 4...20 mA <= 500 Ohm by cabling || voltage 0...10 V >= 100 kOhm by cabling
- [Us] Rated Supply Voltage:
- 24 V DC +/- 20 %, non isolated
- Ambient Air Temperature For Storage:
- -40-85 °C
- Fire Resistance:
- 850 °C IEC 60695-2-1 || 850 °C UL
- Shock Resistance:
- 50 gn 11 ms IEC 60068-2-27
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Current Consumption:
- <= 40 mA voltage output || <= 60 mA current output
- Range Of Product:
- Harmony Analog
- Resistance To Electrostatic Discharge:
- 6 kV in contact)IEC 61000-4-2 level 3 || 8 kV in air)IEC 61000-4-2 level 3
- Tightening Torque:
- 0.6-1.1 N.m
- [Ui] Rated Insulation Voltage:
- 2 kV
- Environmental Disclosure:
- ENVPEP1607005EN
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Warranty:
- 18 months
- Temperature Coefficient:
- 200 ppm/°C
- Net Weight:
- 0.12 kg
- Standards:
- IEC 60584-1 || IEC 60947-1
- Mercury Free:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Local Signalling:
- for power ON LED (green)
- Disturbance Radiated/Conducted:
- CISPR 22 group 1 - class B || CISPR 11
- Analogue Output Current:
- 4-30 mA no input or input wire broken
- Clamping Connection Capacity:
- 1 x 2.5 mm² || 2 x 1.5 mm²
- Ip Degree Of Protection:
- IP20 terminal block) || IP50 housing)
- Pollution Degree:
- 2 IEC 60664-1
- Marking:
- CE
- Analogue Output Voltage:
- -15...0 V no input or input wire broken
- Surge Withstand:
- 0.5 kV 1.2/50 µs IEC 61000-4-5
- Product Or Component Type:
- voltage/current converter
- Circularity Profile:
- ENVEOLI1607005EN
