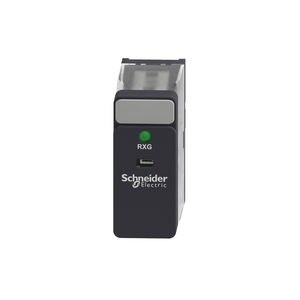

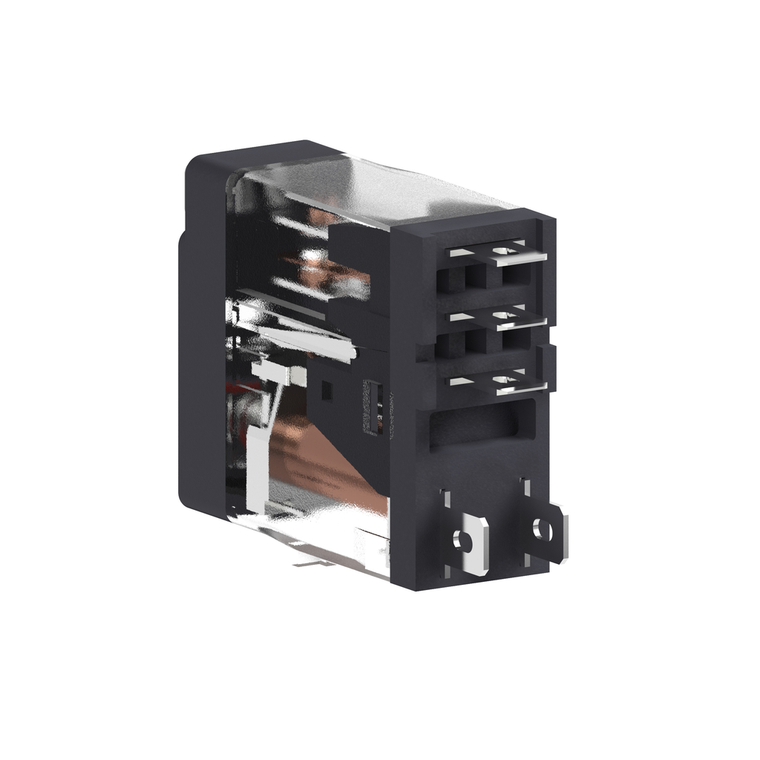

Schneider Electric RXG11BD 1Co 10A Relay +Ltb-Led 24Vdc Pack of 10
Schneider Electric
$43.90
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric RXG11BD 1Co 10A Relay +Ltb-Led 24Vdc Pack of 10
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony RXG plug-in relay socket has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use." "It also offers lockable test button." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere thanks to its 16mm width." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0 0
- Vibration Resistance:
- 3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
- China Rohs Regulation:
- X
- Resistance:
- 1100 Ohm +/- 10 %
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Circularity Profile:
- N/A
- Environmental Disclosure:
- ENVPEP1406006EN
- Relative Humidity:
- 10-85 %
- [Ie] Rated Operational Current:
- 10 A 30 V DC) UL || 10 A 30 V DC) IEC || 10 A 250 V AC) IEC || 10 A 250 V AC) UL
- Local Signalling:
- flag
- Ambient Air Temperature For Storage:
- -40-85 °C
- Device Presentation:
- complete product
- Utilisation Coefficient:
- 0.2
- Shock Resistance:
- 20 gn in operation || 100 gn not in operation
- Series Name:
- interface relay
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Contacts Material:
- silver alloy (AgSnO2In2O3)
- Standards:
- CSA C22.2 No 14 || IEC 61810-1 || UL 508
- Mounting Position:
- any position
- Insulation Resistance:
- 1000 MOhm at 500 V DC
- Safety Reliability Data:
- B10d = 100000
- Ambient Air Temperature For Operation:
- -40-70 °C
- Protection Category:
- RT I
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Mechanical Durability:
- 10000000 cycles
- Net Weight:
- 0.02 kg
- Contacts Type And Composition:
- 1 C/O
- Operating Rate:
- <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
- Colour Of Cover:
- standard
- Toxic Heavy Metal Free:
- Yes
- Range Of Product:
- Harmony Electromechanical Relays
- Control Type:
- lockable test button
- Maximum Switching Capacity:
- 2500 VA
- Overvoltage Category:
- III
- Product Certifications:
- CSA || CE || EAC || UL || DNV-GL
- Maximum Switching Voltage:
- 250 V AC || 30 V DC
- Torque Value:
- 0.8 N.m
- Product Or Component Type:
- plug-in relay
- Ip Degree Of Protection:
- IP40
- Device Short Name:
- RXG
- Rohs Exemption Information:
- Yes
- Electrical Durability:
- 100000 cycles NO resistive at 55 °C || 100000 cycles NC resistive at 55 °C
- [Ithe] Conventional Enclosed Thermal Current:
- 10 A -40-55 °C
- Dielectric Strength:
- 1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation
- Load Current:
- 10 A 250 V AC
- Pollution Degree:
- 2
- Sustainable Offer Status:
- Green Premium product
- [Uc] Control Circuit Voltage:
- 24 V DC
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Test Levels:
- level A group mounting
- Status Led:
- without
- Minimum Switching Capacity:
- 500 mW at 100 mA, 5 V DC
- Mercury Free:
- Yes
- Reach Free Of Svhc:
- Yes
- Drop-Out Voltage Threshold:
- >= 0.1 Uc DC
