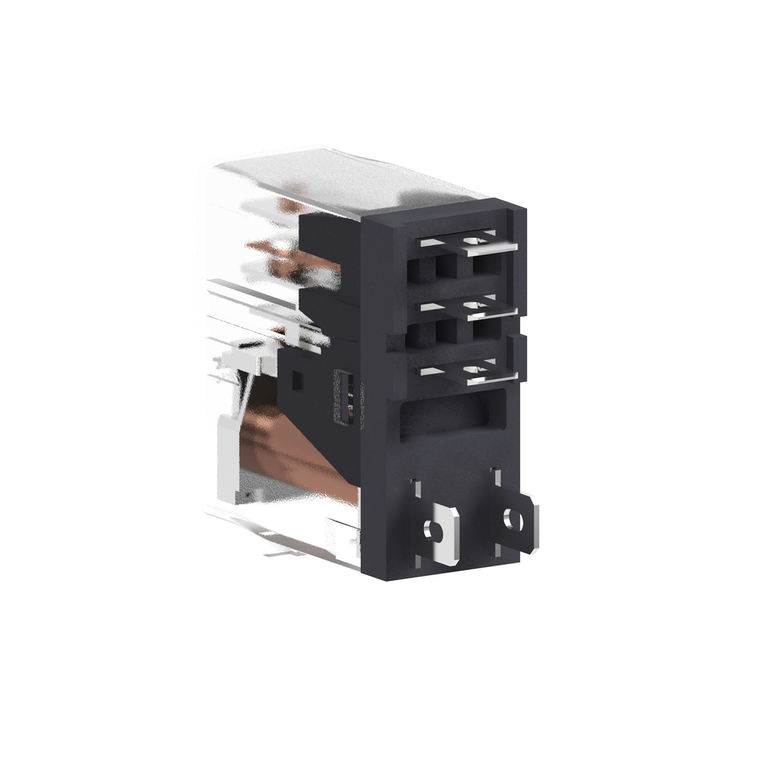

Schneider Electric RXG15BD 1Co 10A Relay Clear 24Vdc Pack of 10
Schneider Electric
$41.50
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony RXG plug-in relay socket has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A." "It has large choice of number of contacts for high rated current use with space-saving design." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0
- Mounting Position:
- any position
- Maximum Switching Capacity:
- 2500 VA
- Sustainable Offer Status:
- Green Premium product
- Dielectric Strength:
- 1000 V AC between contacts with micro disconnection || 5000 V AC between coil and contact with reinforced insulation
- [Uc] Control Circuit Voltage:
- 24 V DC
- Drop-Out Voltage Threshold:
- >= 0.1 Uc DC
- Environmental Disclosure:
- ENVPEP1406006EN
- Colour Of Cover:
- transparent
- Safety Reliability Data:
- B10d = 100000
- Circularity Profile:
- N/A
- Minimum Switching Capacity:
- 500 mW at 100 mA, 5 V DC
- Overvoltage Category:
- III
- Product Certifications:
- CSA || CE || EAC || UL || DNV-GL
- Contacts Material:
- silver alloy (AgSnO2In2O3)
- [Ui] Rated Insulation Voltage:
- 250 V IEC || 300 V CSA || 300 V UL
- Operating Rate:
- <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
- Test Levels:
- level A group mounting
- Vibration Resistance:
- 3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
- Pollution Degree:
- 2
- Ip Degree Of Protection:
- IP40
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
- Product Or Component Type:
- plug-in relay
- Contacts Type And Composition:
- 1 C/O
- Ambient Air Temperature For Operation:
- -40-70 °C
- Reach Free Of Svhc:
- Yes
- Resistance:
- 1100 Ohm +/- 10 %
- Device Short Name:
- RXG
- Range Of Product:
- Harmony Electromechanical Relays
- Standards:
- IEC 61810-1 || CSA C22.2 No 14 || UL 508
- China Rohs Regulation:
- X
- Device Presentation:
- complete product
- Mechanical Durability:
- 10000000 cycles
- Toxic Heavy Metal Free:
- Yes
- Torque Value:
- 0.8 N.m
- Load Current:
- 10 A 250 V AC
- Relative Humidity:
- 10-85 %
- Utilisation Coefficient:
- 0.2
- Maximum Switching Voltage:
- 250 V AC || 30 V DC
- Rohs Exemption Information:
- Yes
- Net Weight:
- 0.018 kg
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Shock Resistance:
- 20 gn in operation || 100 gn not in operation
- [Ie] Rated Operational Current:
- 10 A 30 V DC) UL || 10 A 30 V DC) IEC || 10 A 250 V AC) IEC || 10 A 250 V AC) UL
- Protection Category:
- RT I
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- [Ithe] Conventional Enclosed Thermal Current:
- 10 A -40-55 °C
- Ambient Air Temperature For Storage:
- -40-85 °C
- Series Name:
- interface relay
- Electrical Durability:
- 100000 cycles NO resistive at 55 °C || 100000 cycles NC resistive at 55 °C
- Insulation Resistance:
- 1000 MOhm at 500 V DC
- Mercury Free:
- Yes
